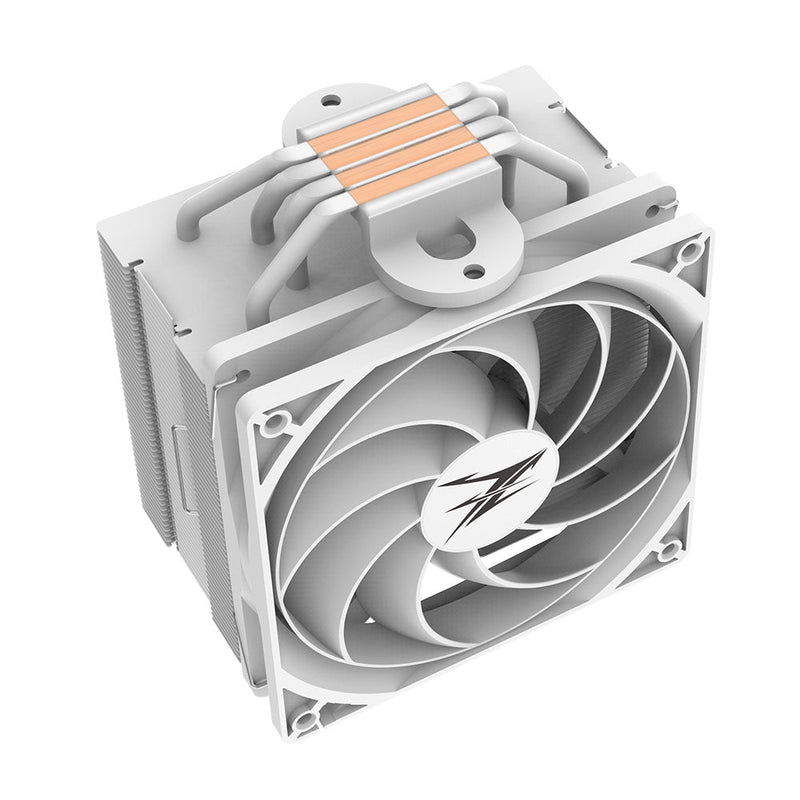

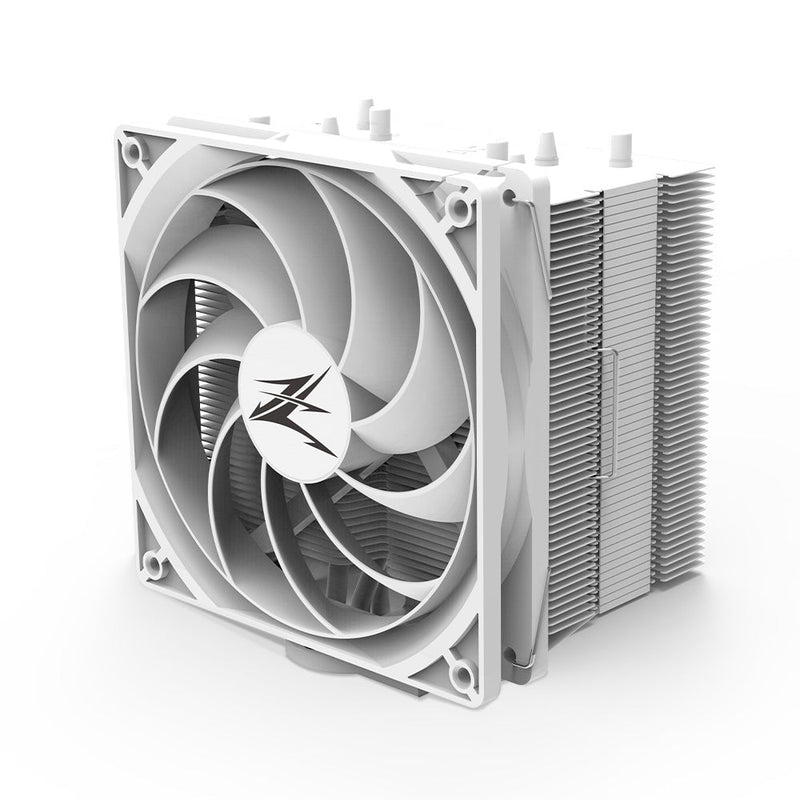

White EBR bearing fan with DTH technology, asymmetric heatsink, and powerful cooling performance for easy installation.

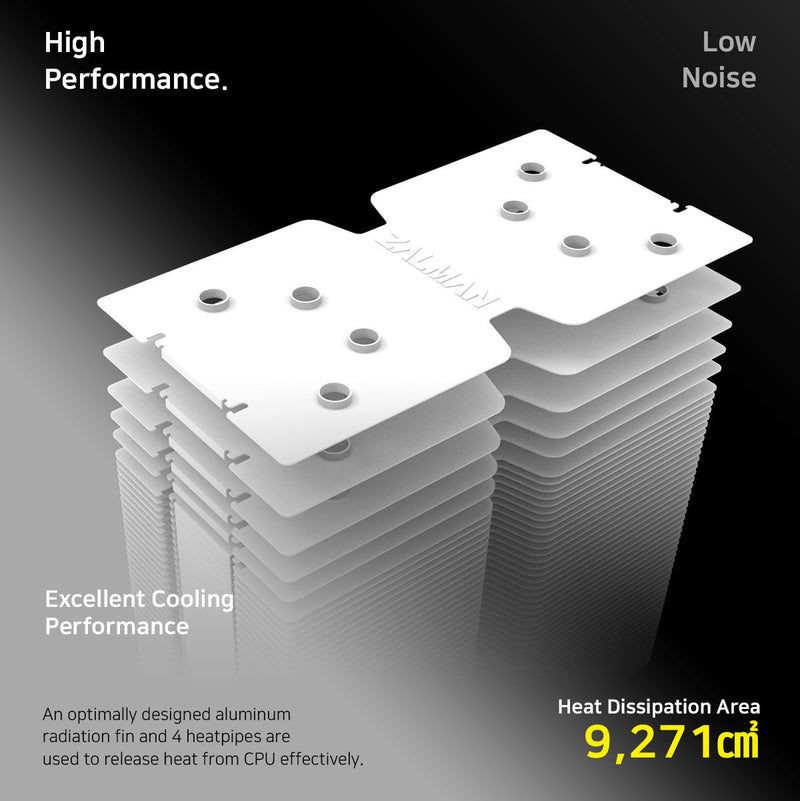

Efficient cooling with low noise, using aluminum fins and 4 heatpipes, providing 9,271 cm² heat dissipation area.

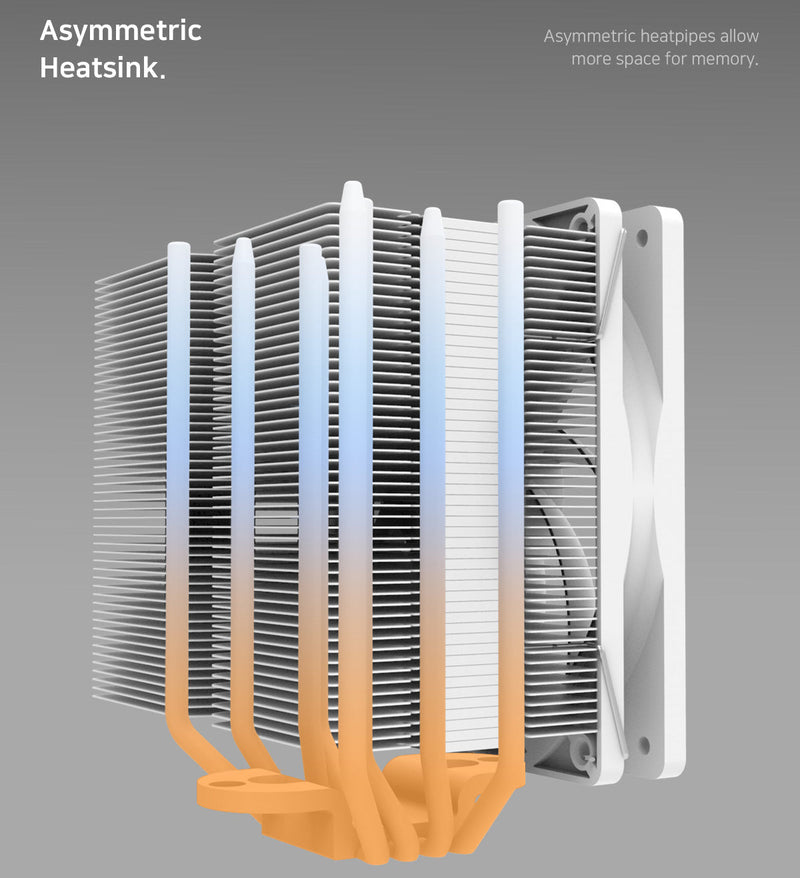

Asymmetric heatsink design provides more space for memory, improving cooling efficiency and component compatibility.
Compatible with Intel and AMD Ryzen processors, offering seamless power management and eliminating compatibility concerns.



  • TOM’S HARDWARE BEST BUDGET COOLER: Our high-performance cooler won Tom’s Hardware award for Best Budget Cooler for 2022.
  • JET ENGINE STYLE BLADES: Powerful Turbine Bladed fan maximizes cooling performance in lower noise operation. Max Noise: 27dB, Max Airflow: 75 CFM, 180W TDP. 2 Year Warranty.

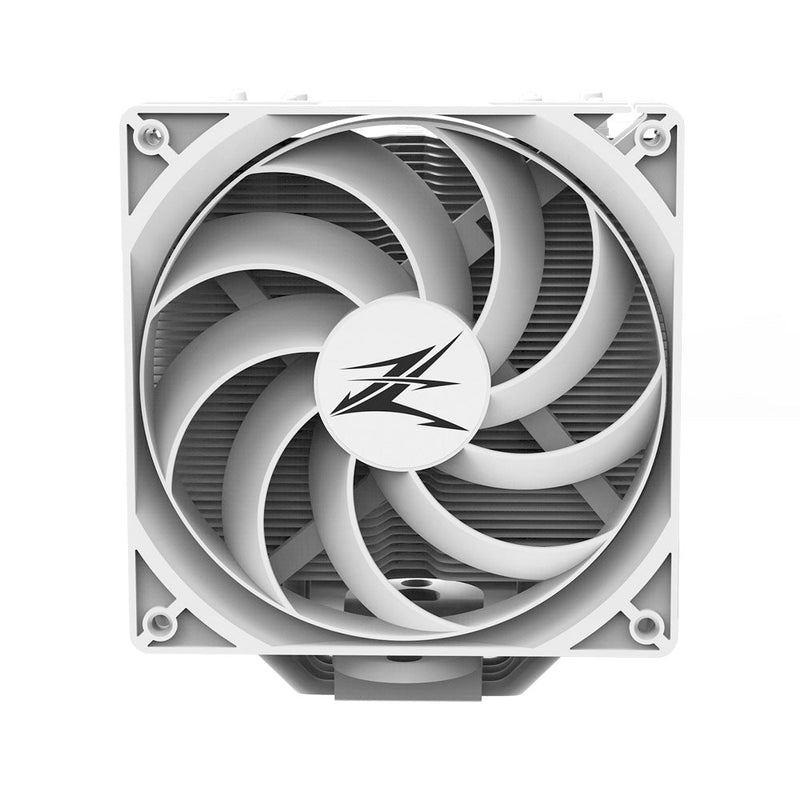

  • POWERFUL LARGER 135MM FAN: A large 135mm fan with massive CFM cools the VRM area of the motherboard. Runs at 700-1500 RPM depending on CPU temperature and motherboard settings.
  • DTH TECHNOLOGY: 4 heat pipes with DTH (Direct Touch Heatpipe) Technology provides ultra-fast heat transfer while minimizing thermal resistance.

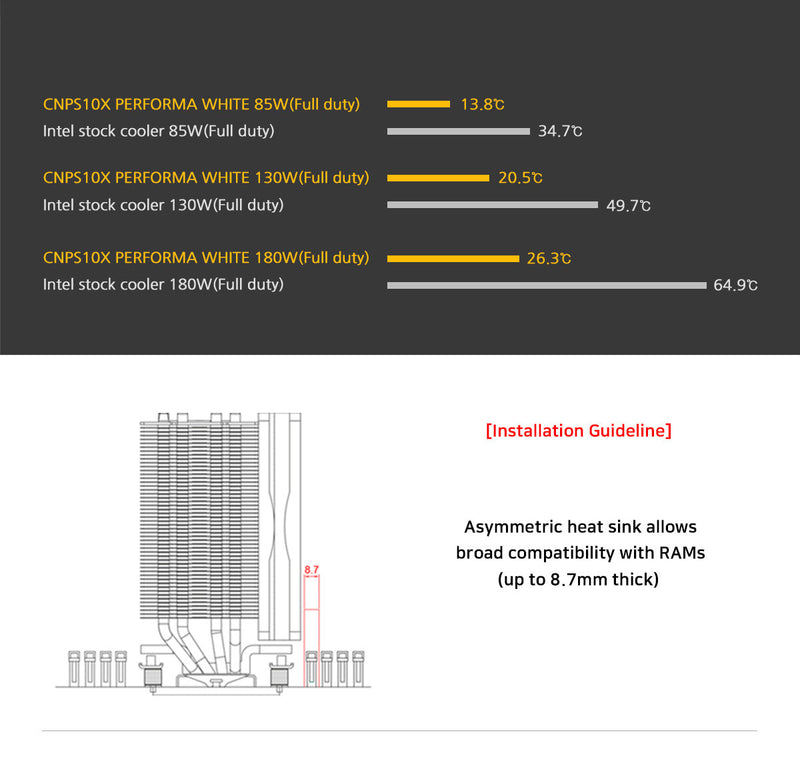

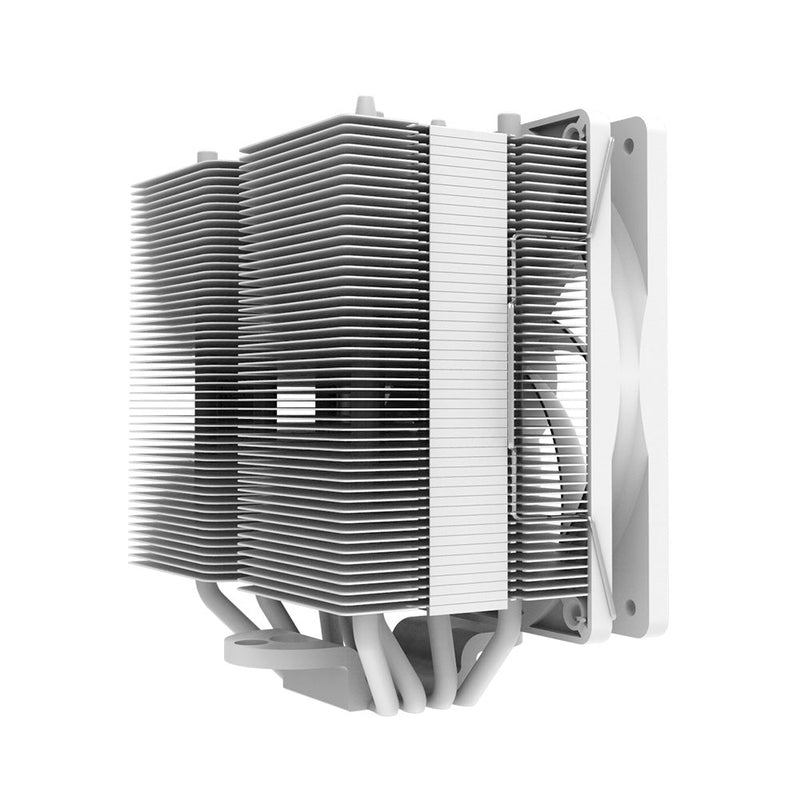

  • ASYMMETRIC HEATSINK: Designed to leave room for motherboard and ram memory clearance. Fan measures 135mm (L) x 95mm (W) x 155mm (H). Fits Intel: LGA 1700/2066/2011-V3/2011/1200/115X, AMD AM5/AM4. SUPPORTS new Intel LGA 1700. No additional kit needed.

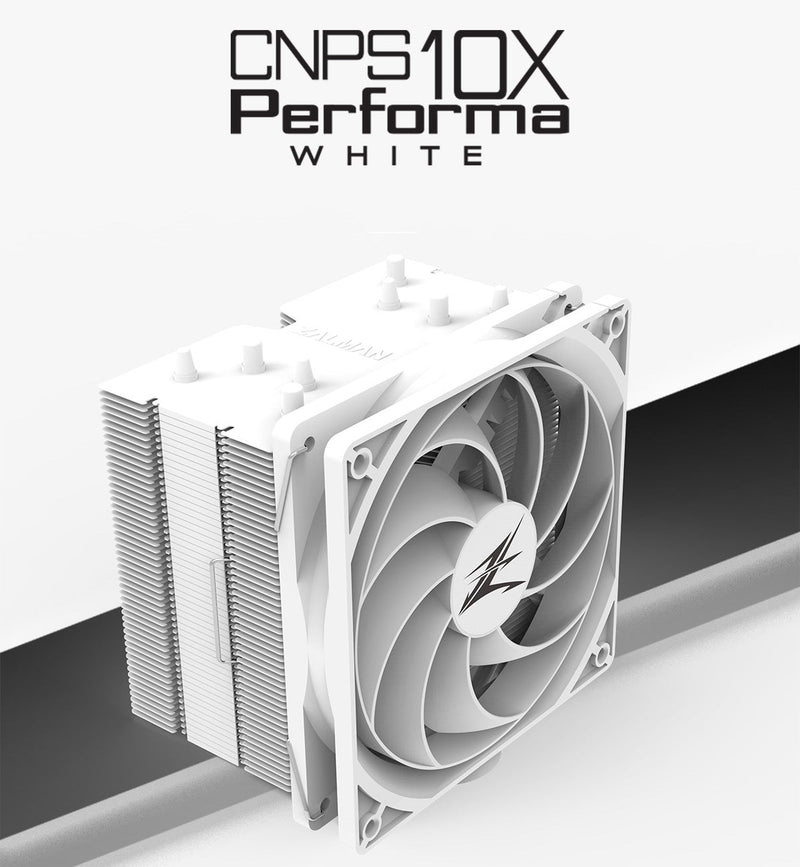

ModelCNPS10X PERFORMA WHITE
Dimensions135 x 95 x 155(H)mm
MaterialsPure Copper, Pure Aluminum
Weight860g
Heat Dissipation Area9,271㎠
Heat Pipe4
TDP180W
Fan Dimensions135 x 135 x 25(H)mm
Fan Bearing TypeEBR Bearing
Fan Speed700~1,500 RPM ±10%
Max. Fan Noise Level27.0 dB(A)±10%
Max. Fan Air Flow75.16 CFM
Max. Fan Air Pressure1.35mmH₂O
Fan Life Span50,000 hours
Fan Connector Type4-pin
Fan Control MethodPWM Control
Rated Voltage12V DC
Rated Current0.2A
Power Consumption2.4W
Socket CompatibilityIntel : LGA 1700 / 1200 / 115X CPUs
AMD : AM5 / AM4 CPUs
