Unique addressable RGB fan design with spider leg design that dampens noise and vibration. The dual bladed design focuses airflow and increases cooling effectiveness.
      • Fan Size: 120mm
      • Fan Speed: 800~1500 RPM
      • Fan Airflow: 54 CFM
      • Bearing Type: Fluid Dynamic
      • Max Noise Level: 28.0 dB(A) ±10%


      Model
      		ZM-SF120
      Dimensions
      		120(L) x 120(W) x 26(H)mm
      Weight
      		100g
      Fan Speed 800~1,500 RPM ± 10%
      MAX Air Flow 54 CFM
      MAX Noise Level
      		28.0 dB(A) ± 10%
      Bearing Type
      		FDB Bearing
      Rating Voltage Fan: 12V DC, LED: 5V DC
      Rating Current Fan: 200mA, LED: 300mA
      Life Span 100,000 hrs
      Connector 4-Pin (PWM), 3-Pin (Addressable)
      Cable Length Fan: 700mm, LED: 700mm

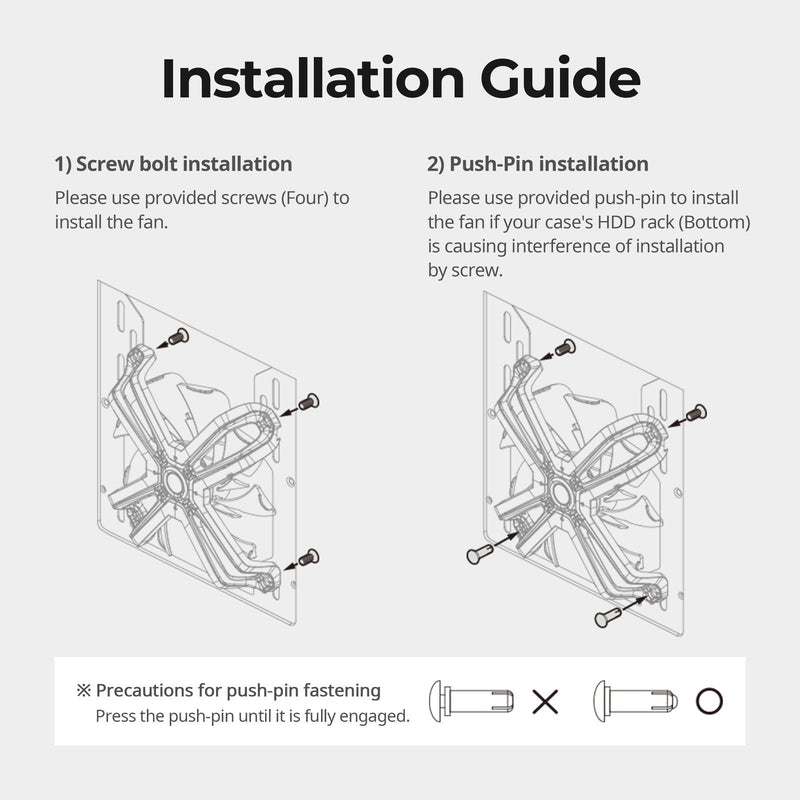

      Components Gigabyte M/B Convertor x 1, Low Noise Connector x 1, Push-Pins x 4 (for PC Case), Screws Bolts x 4

      ZALMAN SF120
      High Performance RGB Cooling Fan with Biomimetics
      By connecting to the motherboard, various colors and color synchronization can be achieved by dedicated software, which gives innovative solution than the existing inconvenience and limited control environment.

      - ZALMAN Dual Blade Fan
      - FDB (Fluid Dynamic Bearing) Fan
      - Supports Motherboard's Addressable RGB Sync (3-Pin)
      - Applying PWM Technology

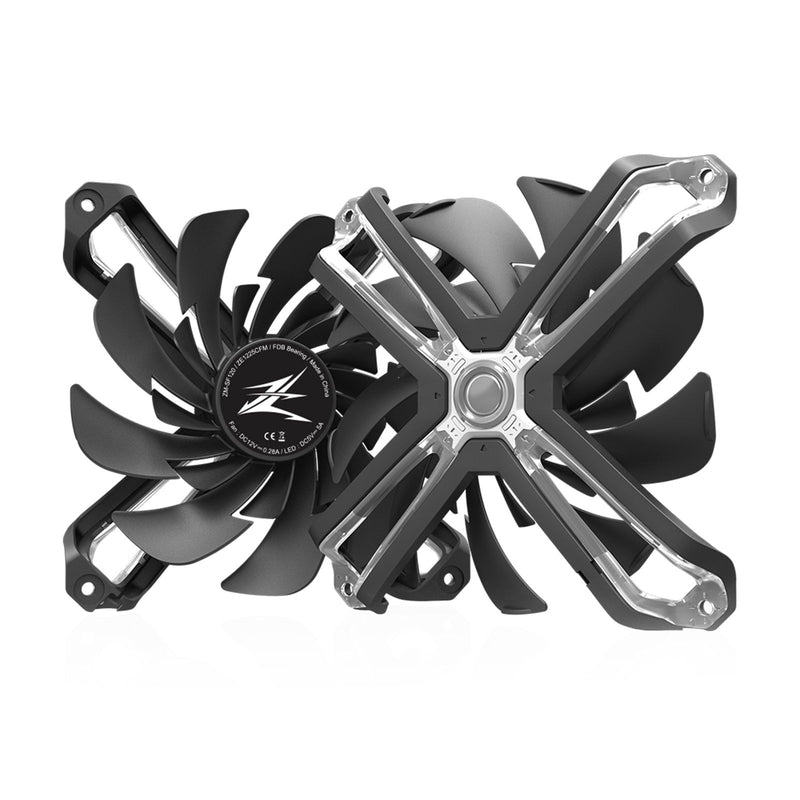

      ZALMAN's Patented Technology Dual Blade Impeller
      The dual flow structure generated by ZALMAN's patented dual blade increases the CFM by pulling the wind from the outside to the inside and increases the wind straightness to creat strong cooling performance.

      ZALMAN Dual Blade Fan
      Patent# 10-1342746

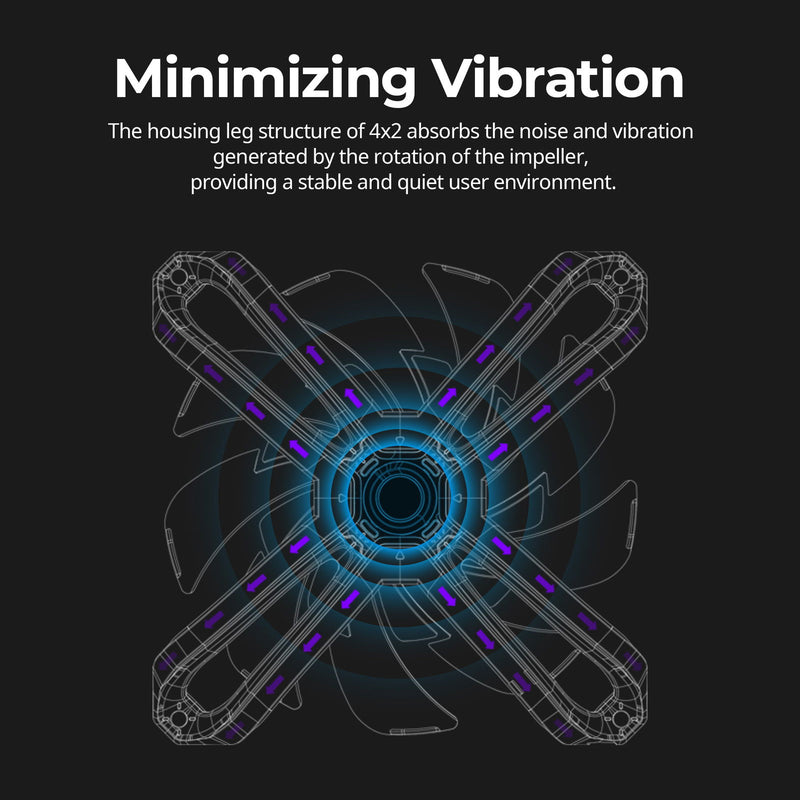

      Minimizing Vibration & Noise by Implementing Biomimetics
      The housing leg structure of 4 x 2 absorbs the noise and vibration generated by the rotation of the impeller, providing a stable and quiet user environment.

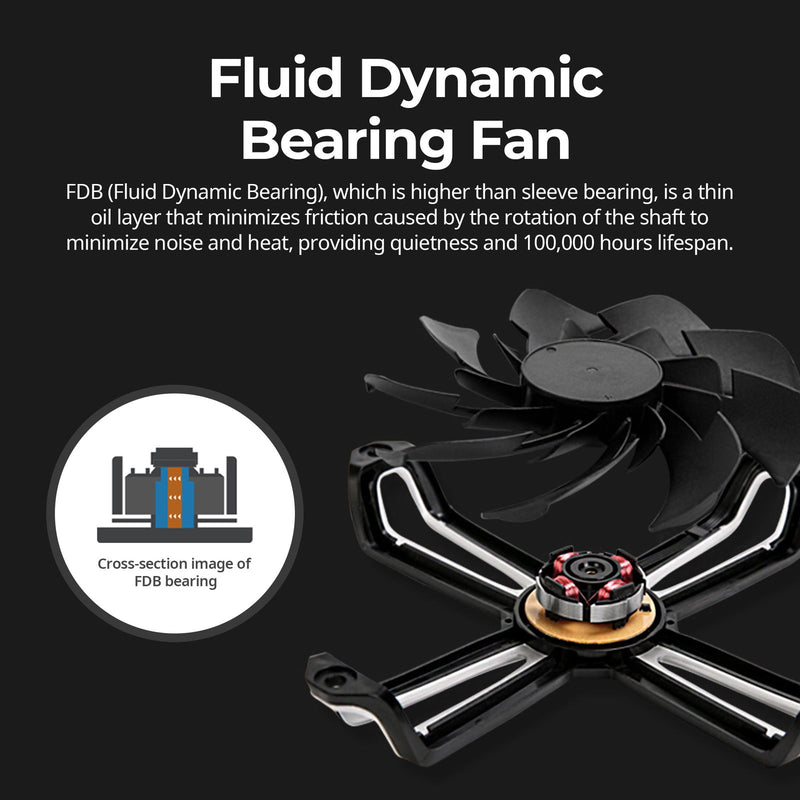

      FDB (Fluid Dynamic Bearing) Fan
      FDB, which is higher than sleeve bearing, is a thin oil layer that minimizes friction caused by the rotation of the shaft to minimize noise and heat, providing quietness and 100,000 hours lifespan.

      FBD Fan Stays Quiet Even for Long Usage
      Unlike other conventional bearing fan, FDB fan stays extremely quiet even after a long period of usage.

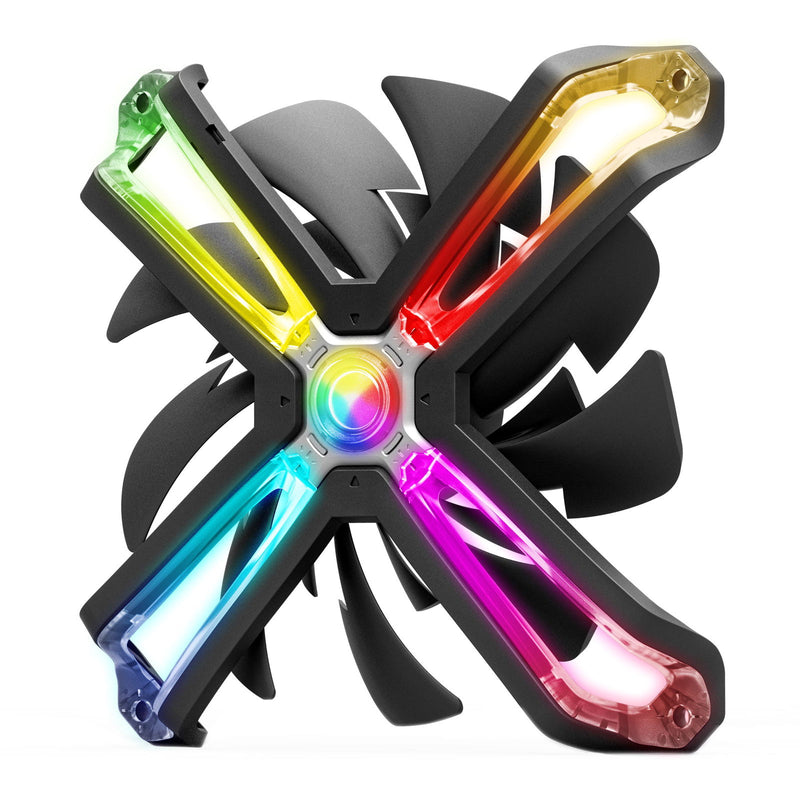

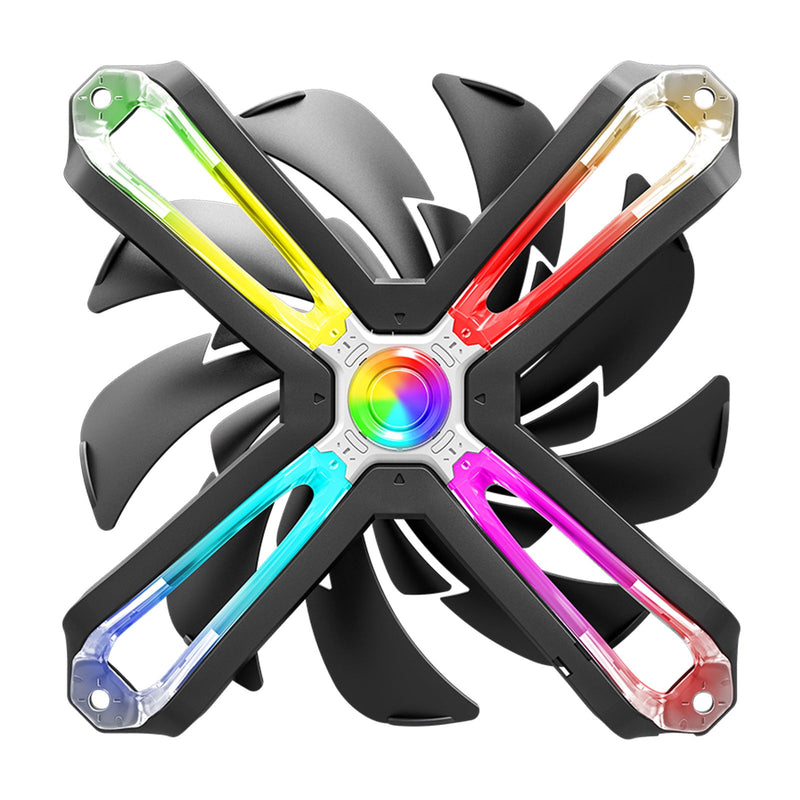

      Applied ZALMAN's Original LED Technology Maximize the Tuning Effect
      RGB LEDs utilizing the straightness characteristic of LEDs are placed in the housing to realize a distinctive LED pattern.
