80 PLUS Bronze certified power supply with 85% efficiency at 115VAC under typical loads. Fully certified to protect your computer from over-current, over-voltage, over-power, and over-temperature protection as well as under-voltage and short-circuit protection.


Model GigaMax 600W
Dimensions
140(L) x 150(W) x 86(H)mm
Weight
1.6kg
80PLUS® Bronze
Type Intel ATX 12V Ver2.31
PFC Active PFC
Input Voltage 100 - 240VAC
Input Current 10 - 5A
Input Frequency
50 - 60Hz
Fan Size
120mm
Fan Bearing
Sleeve Bearing
Efficiency Max 85% @115VAC, Typical load
MTBF 100,000 hours
Operating Temperature 0 ~ +40℃
Protection OCP/OVP/OPP/OTP/UVP/SCP

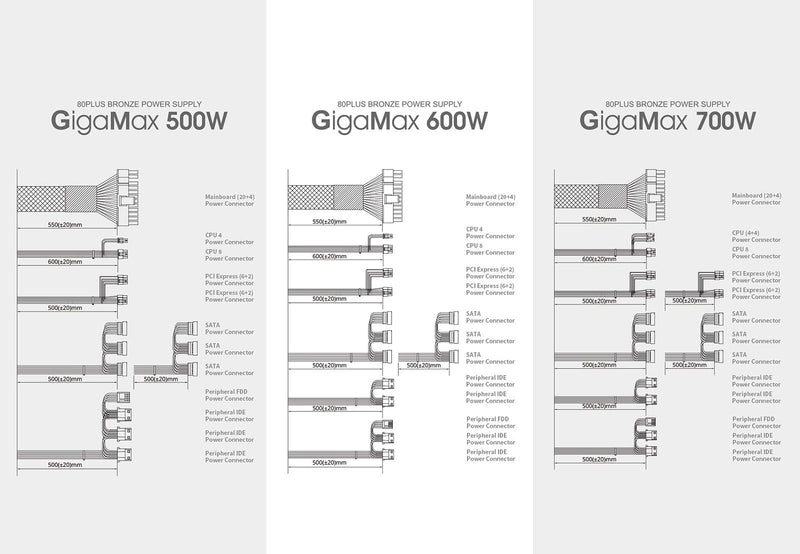

Cable Mainboard (20+4)Pin Connector x 1, CPU 8Pin + 4Pin Connector x 1, PCI (6+2)Pin Connector x 2, S-ATA Connector x 6, IDE Connector x 4, FDD Connector x 1

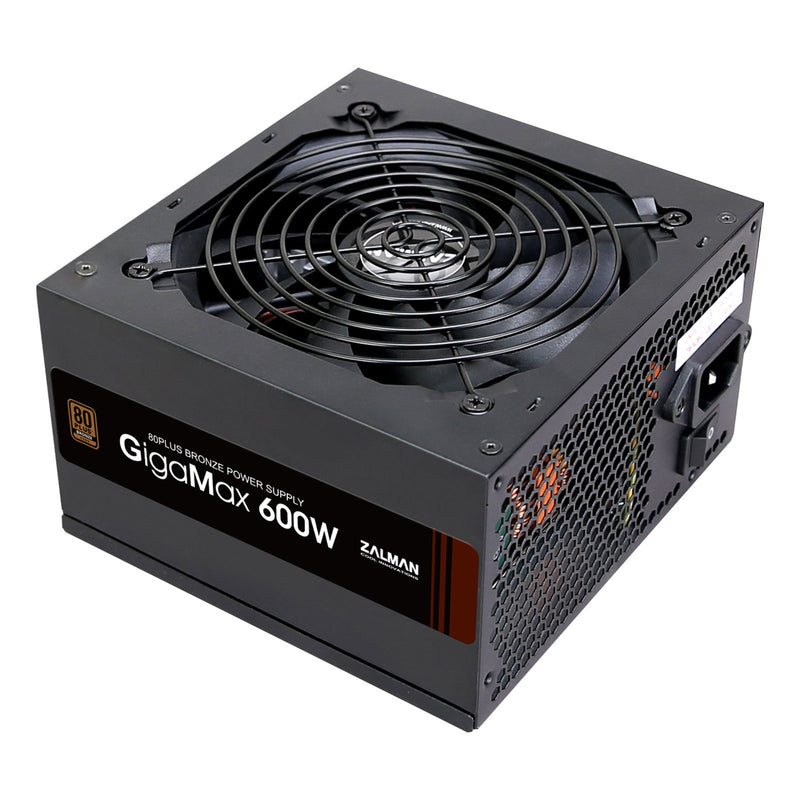

GigaMax ZM600

ZALMAN GigaMax 600W
80PLUS Bronze Power Supply
Standard ATX Size (140mm x 150mm x 86mm) provides wide range of compatibility.

- Secondary Protection IC
- 2013 READY
- +12V Output
- 105℃ Capacitors
- Active PFC
- 120mm HDB Fan

Multiple Protection Circuit System
Multiple Protection Circuit System protects your system.
- OCP, OPP, OVP, UVP, OTP, SCP

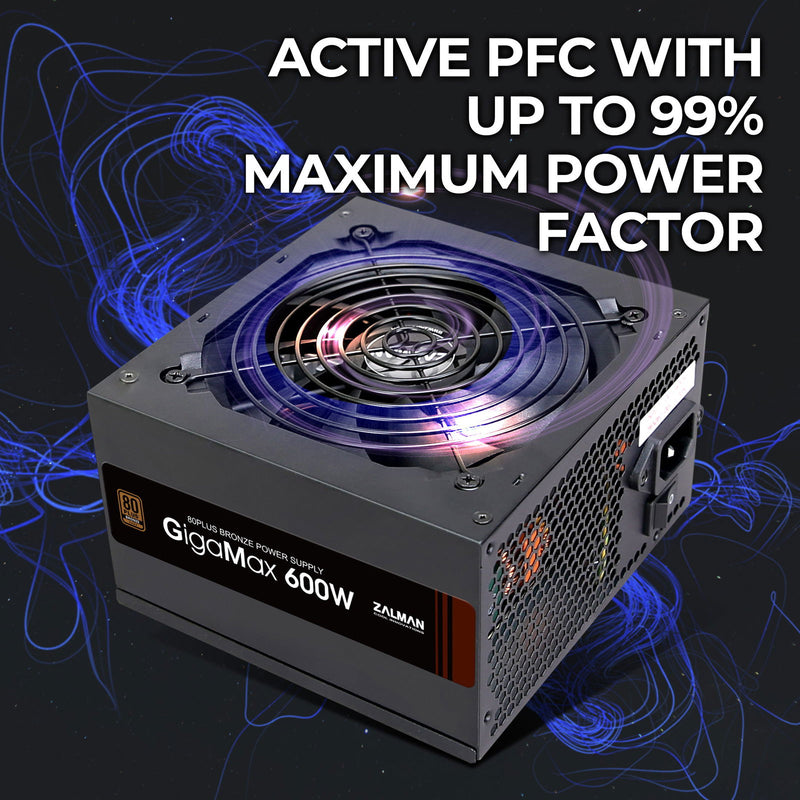

Active PFC with up to 99% Maximum Power Factor
By Applying an active PFC (Power Factor Correction) circuit that maximizes power efficiency, it provides electromagnetic wave reduction and power efficiency while preventing reverse current.

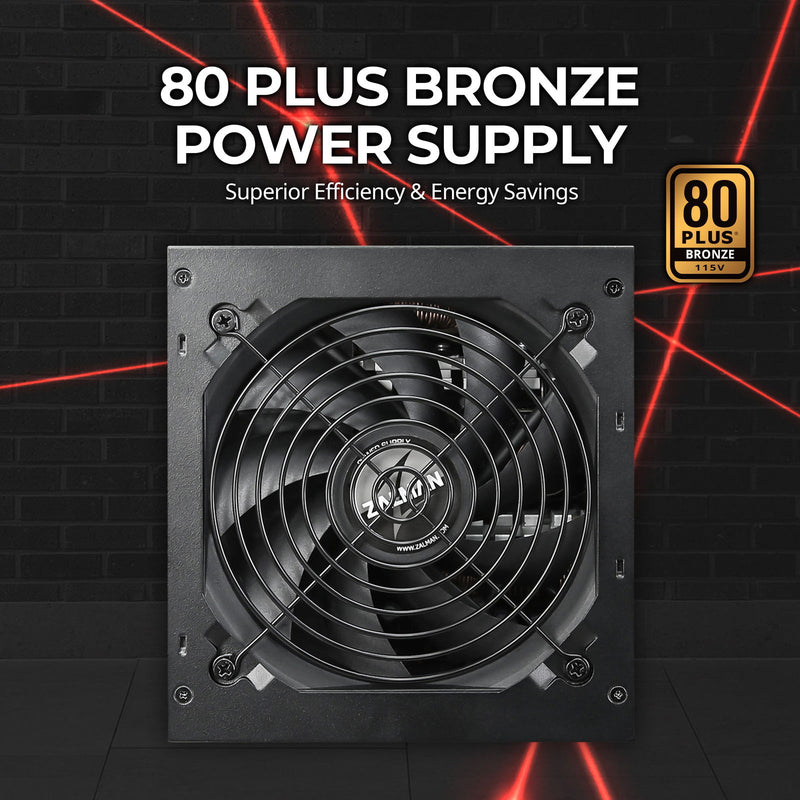

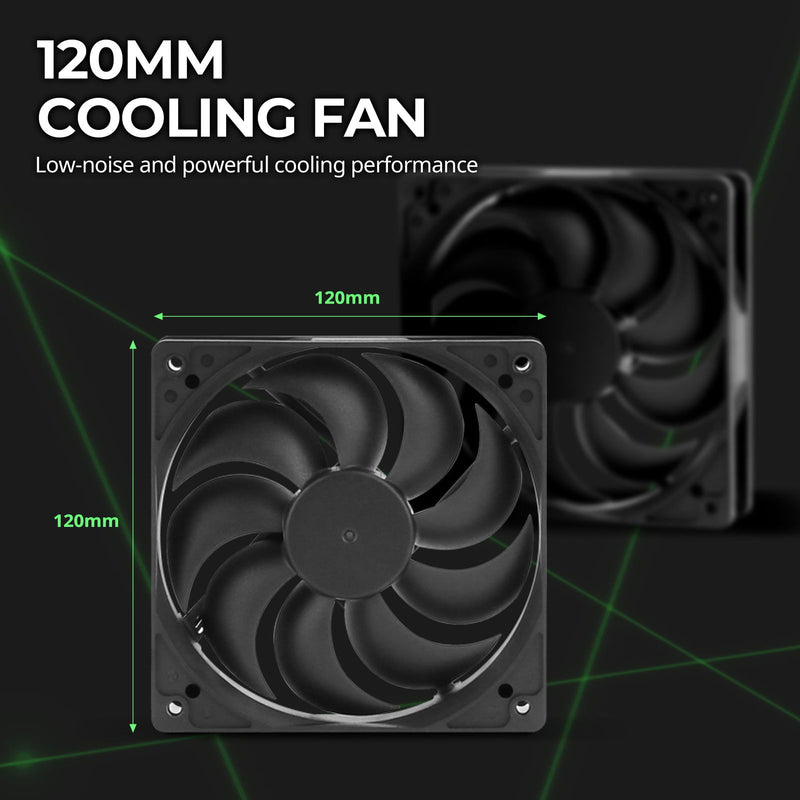

Low-noise and Powerful Cooling Performance
120mm Low-noise fan delivers powerful spin even at a low RPM to quickly removes heat from power supply for optimal cooling performance.

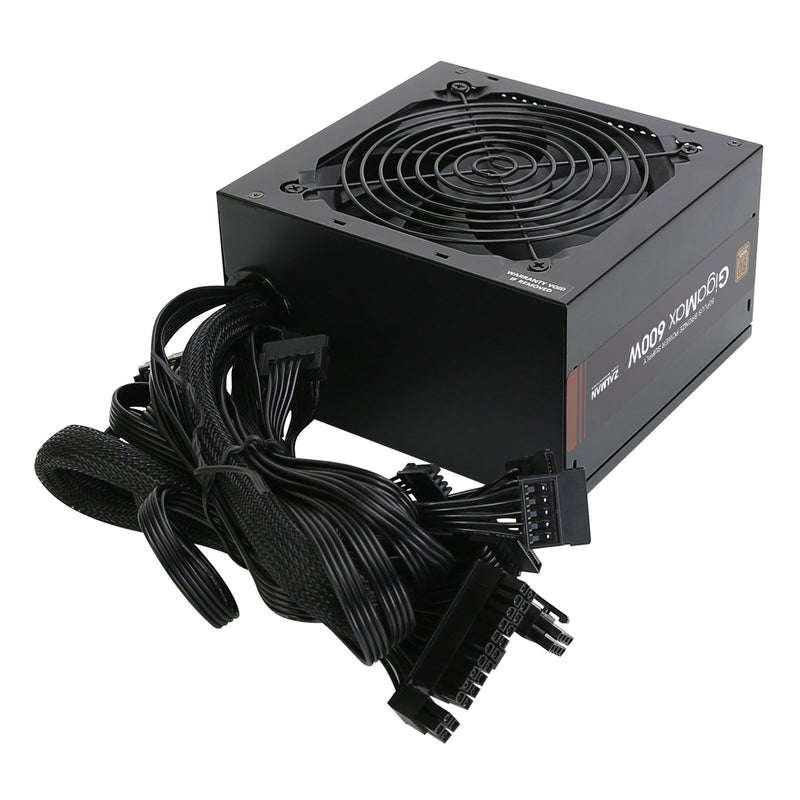

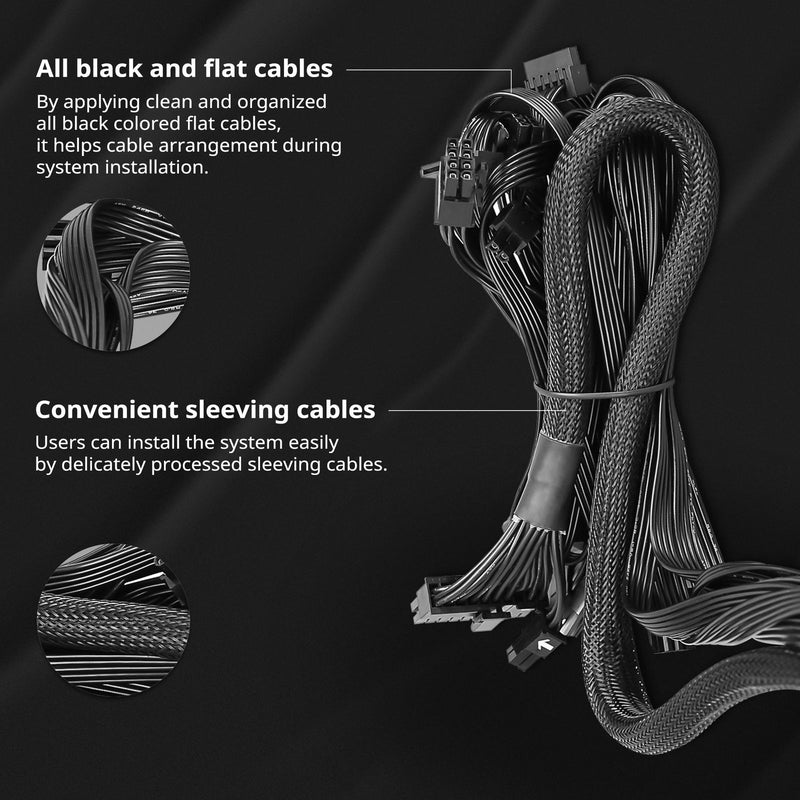

Flat & Convenient Sleeving Cables
- All black and flat cables: By applying clean and organized all black colored flat cables, it helps cable arrangement during system installation.
- Convenient sleeving cables: Users can install the system easily by delicately processed sleeving cables

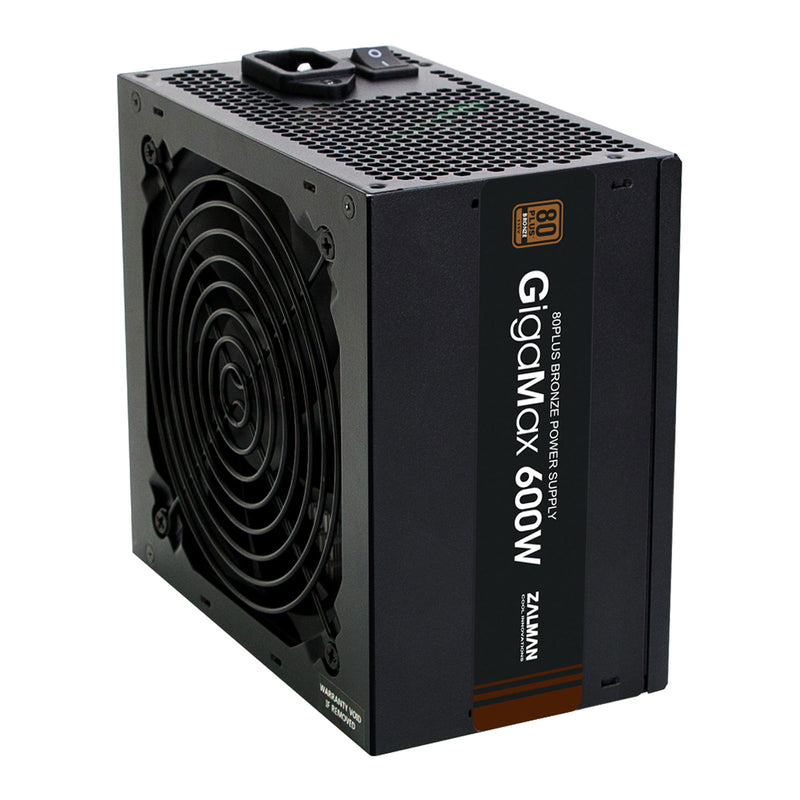

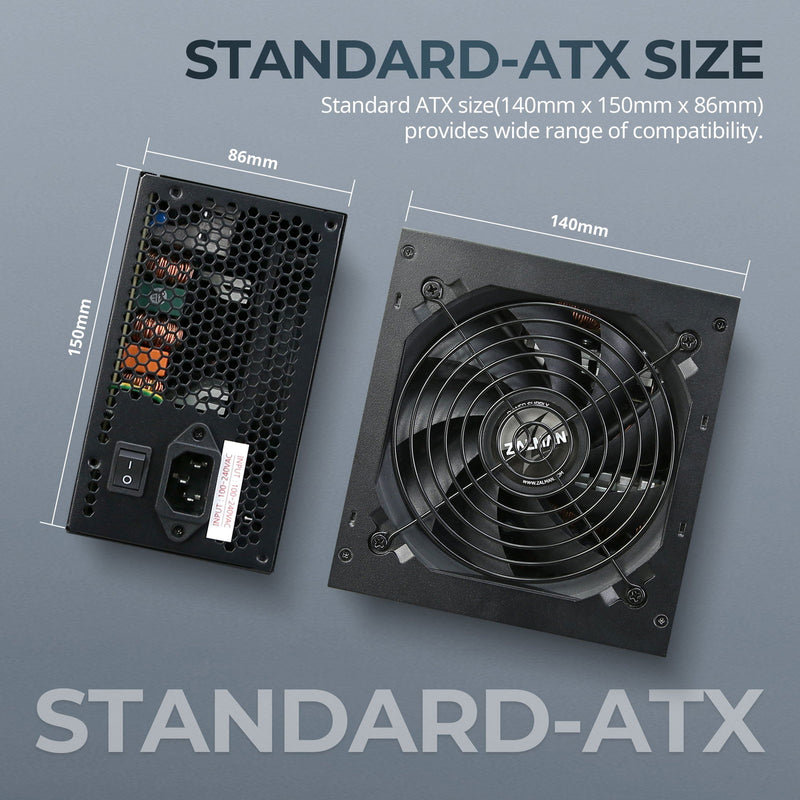

Standard-ATX Size
Standard ATX Size (140mm x 150mm x 86mm) provides wide range of compatibility.

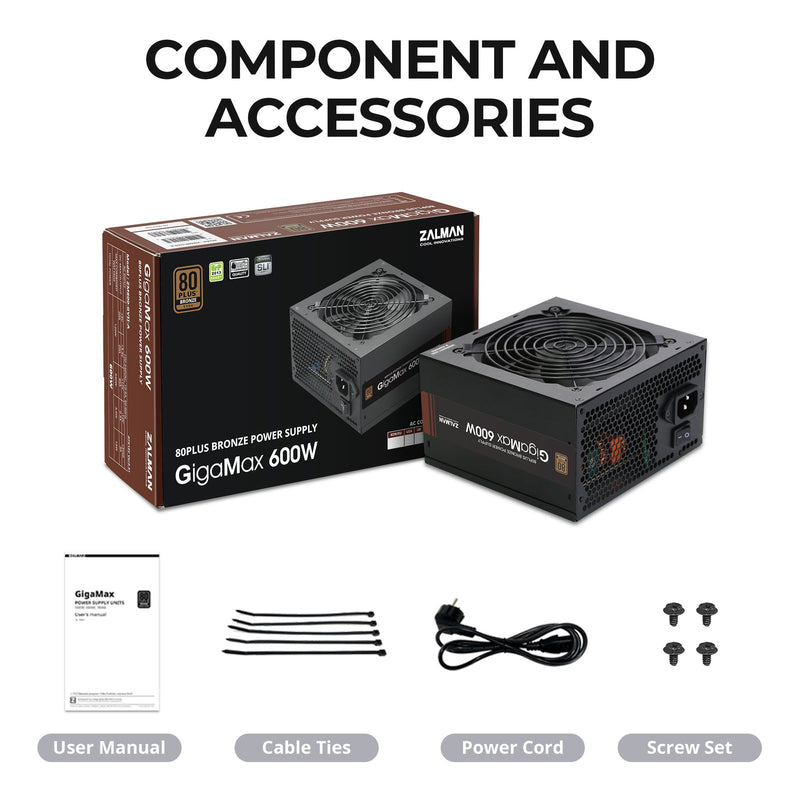

Component and Accessories
- User Manual, Cable Ties, Power Cord, Screw Set
