80 PLUS Bronze certified power supply with 85% efficiency at 115VAC under typical loads. Fully certified to protect your computer from over-current, over-voltage, over-power, and over-temperature protection as well as under-voltage and short-circuit protection.


Model GigaMax 500W
Dimensions
140(L) x 150(W) x 86(H)mm
Weight
1.5kg
80PLUS® Bronze
Type Intel ATX 12V Ver2.31
PFC Active PFC
Input Voltage 100 - 240VAC
Input Current 8 - 4A
Input Frequency
50 - 60Hz

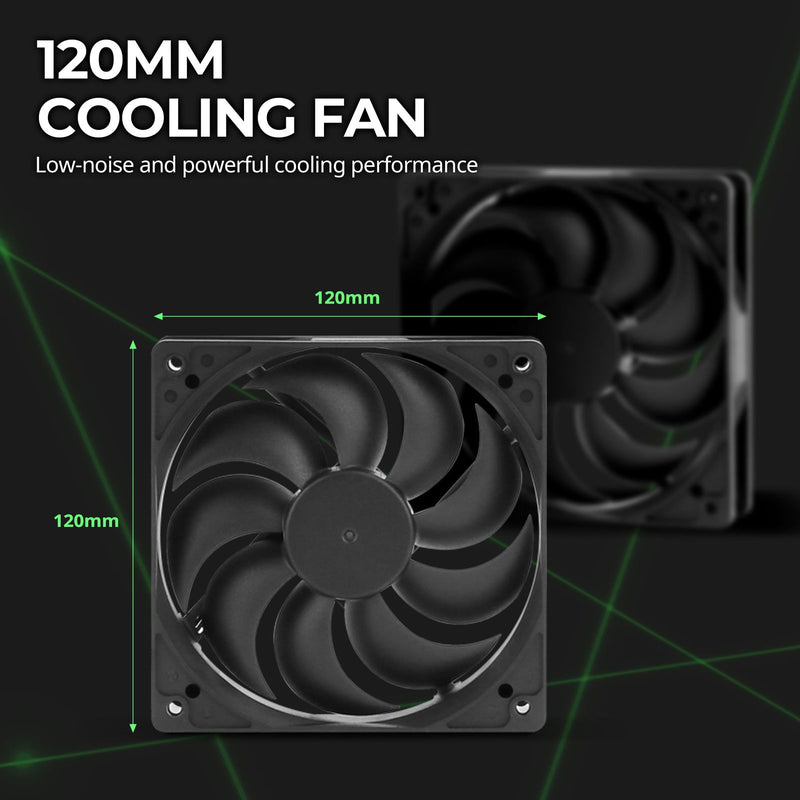

Fan Size
120mm
Fan Bearing
Sleeve Bearing
Efficiency Max 85% @115VAC, Typical load
MTBF 100,000 hours
Operating Temperature 0 ~ +40℃
Protection OCP/OVP/OPP/OTP/UVP/SCP

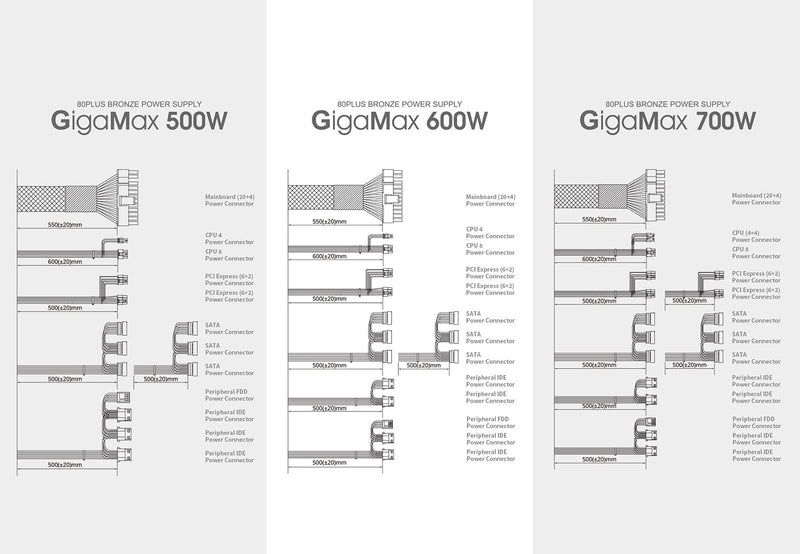

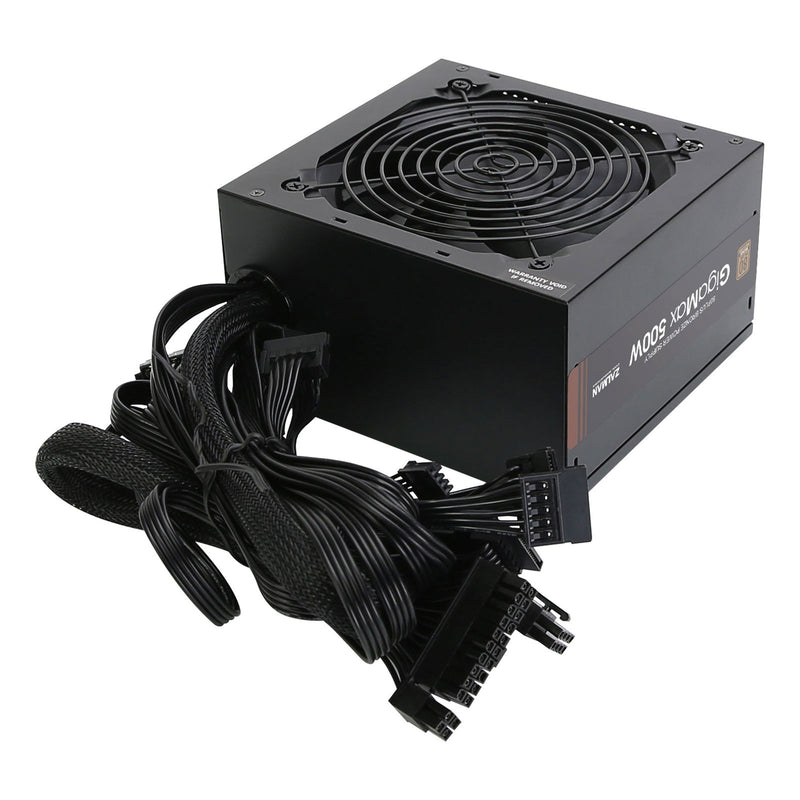

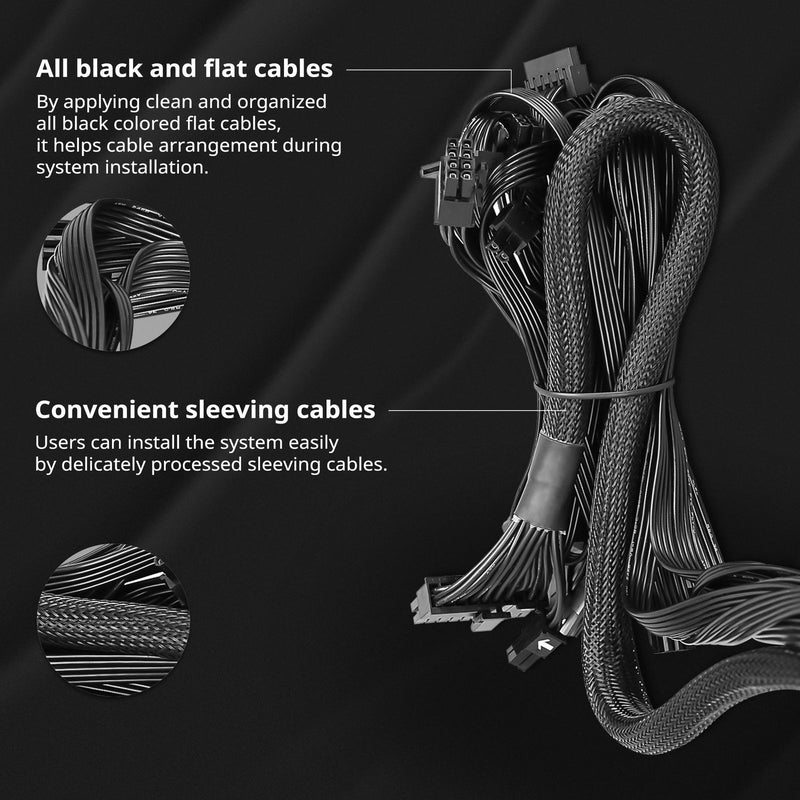

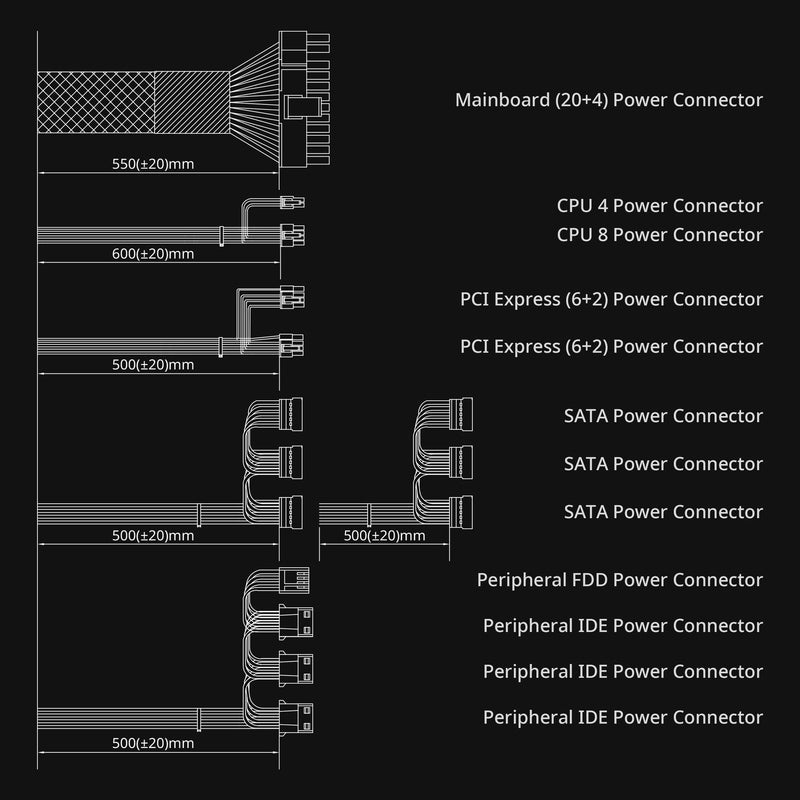

Cable Mainboard (20+4)Pin Connector x 1, CPU 8Pin + 4Pin Connector x 1, PCI (6+2)Pin Connector x 2, S-ATA Connector x 6, IDE Connector x 3, FDD Connector x 1

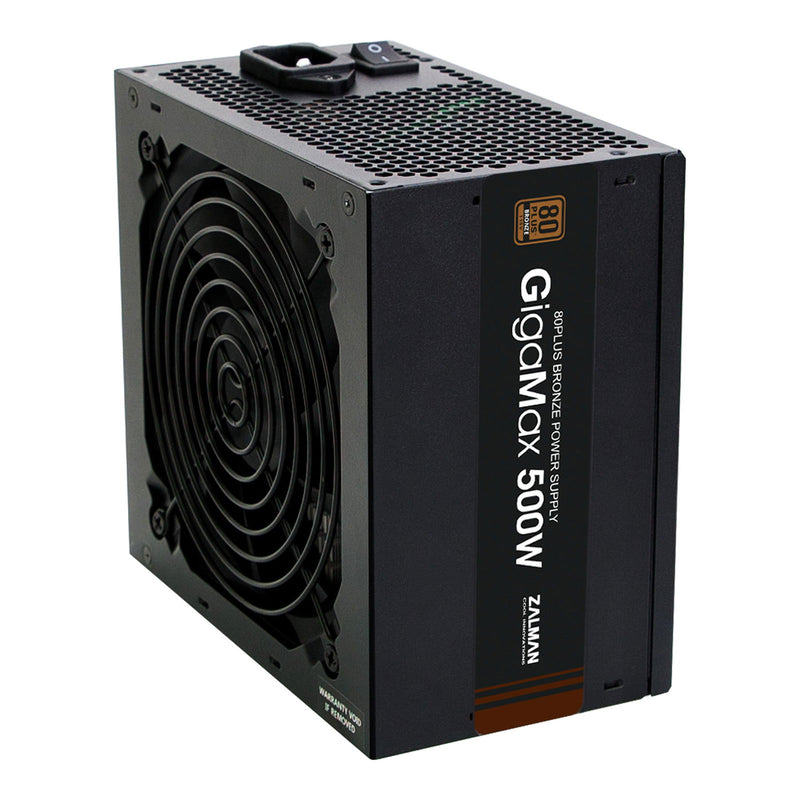

GigaMax ZM500GVII-A

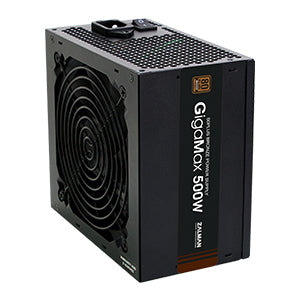

ZALMAN GigaMax 500W
80PLUS Bronze Power Supply
Standard ATX Size (140mm x 150mm x 86mm) provides wide range of compatibility.

- Secondary Protection IC
- 2013 READY
- +12V Output
- 105℃ Capacitors

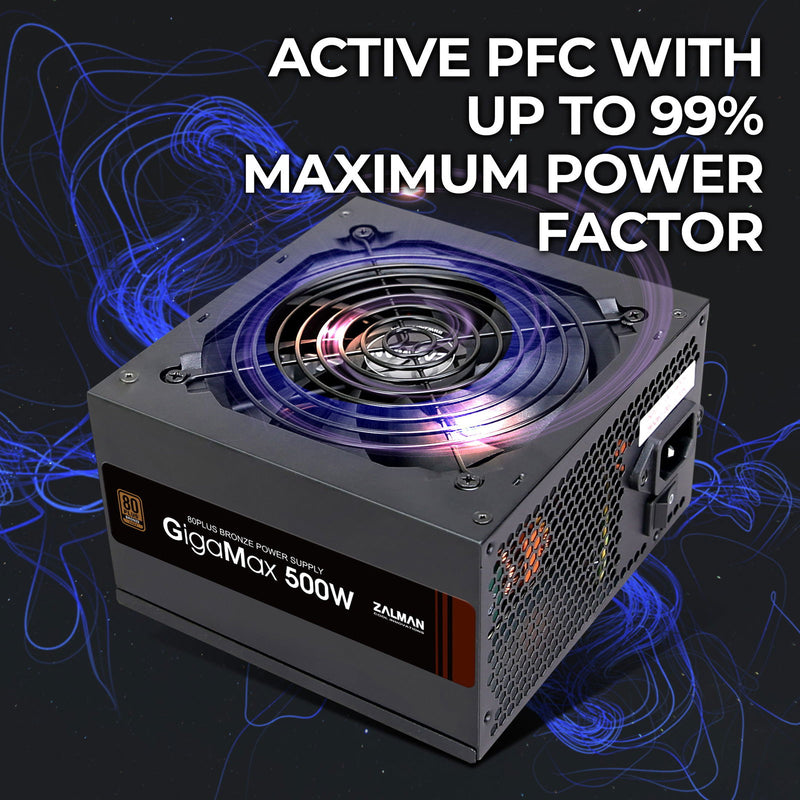

- Active PFC
- 120mm HDB Fan
