• The dual flow created by the dual blade impeller increases the airflow for powerful cooling Performance and delivers efficient airflow to educe noise.
  • EBR (Long Life Bearing) applied, minimizing noise and inflow of the dust for longer life span.
  • Different from typical system fans, the housing support is designed in the reverse direction so that Friction caused by structure can be removed for more efficient airflow.

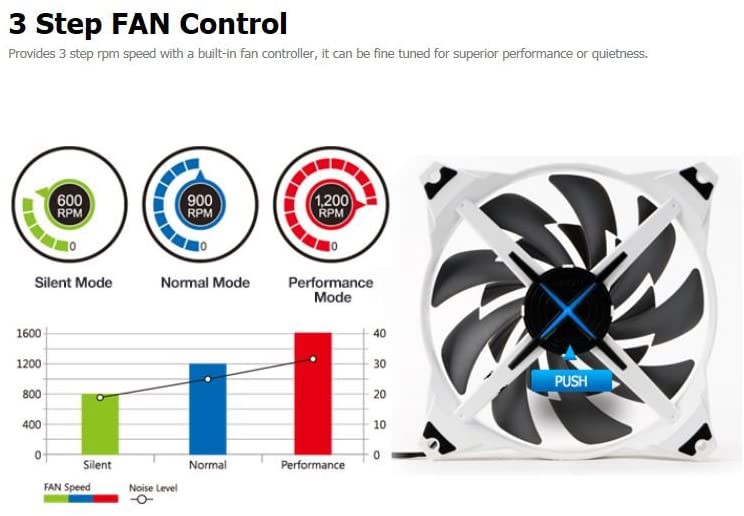

  • Provides 3 step rpm speed with a built-in fan controller, it can be fine tuned for superior performance or quietness.
  • Dimension: 140(L) x 140(W) x 27(H)mm / Weight: 159g / Fan Speed: 600 - 1,200rpm 10% / Air Flow: 63 CFM / Connector: 3 Pin
  • Air Pressure: 1.1mm H20 / Noise Level: 16.5 - 28 dB(A) 10% / Bearing: EBR (Long Life Bearing) / Voltage: DC 12V / Life Span: 350,000 hrs.


Model
ZM-DF14
Dimensions
140(L) x 140(W) x 27(H)mm
Weight
159g
Fan Speed 600-1,200 RPM ± 10%
Air Flow 63 CFM
Air Pressure
1.1mm H₂O
Noise Level 16.5-28 dB(A) ± 10%
Bearing Type EBR (Long Life Bearing)
Connector 3 Pin
Voltage DC 12V
Life Span350,000hrs

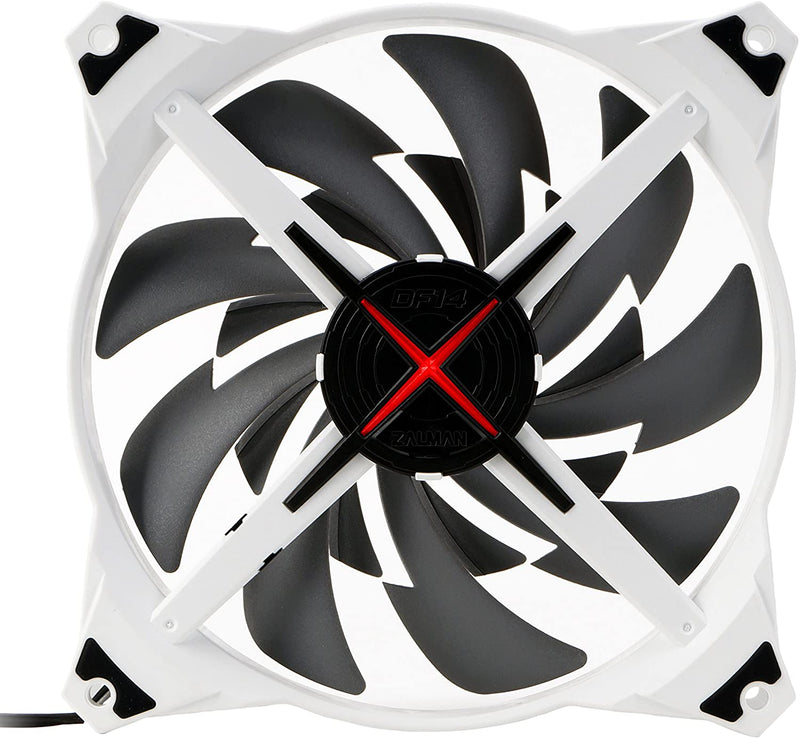

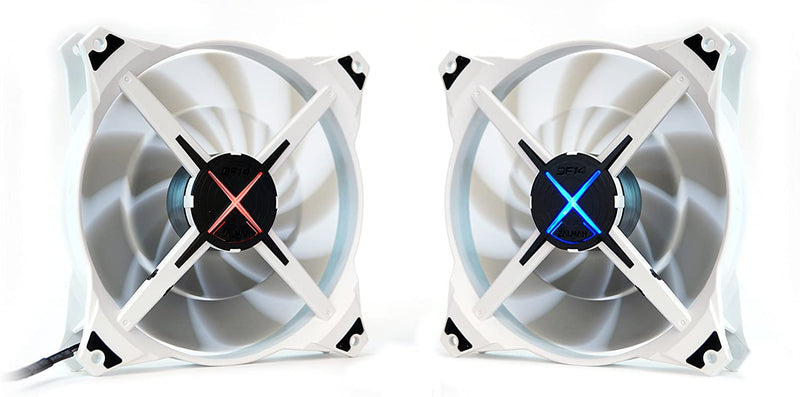

LEDBlue (ZM-DF14BL)/Red (ZM-DF14RL)

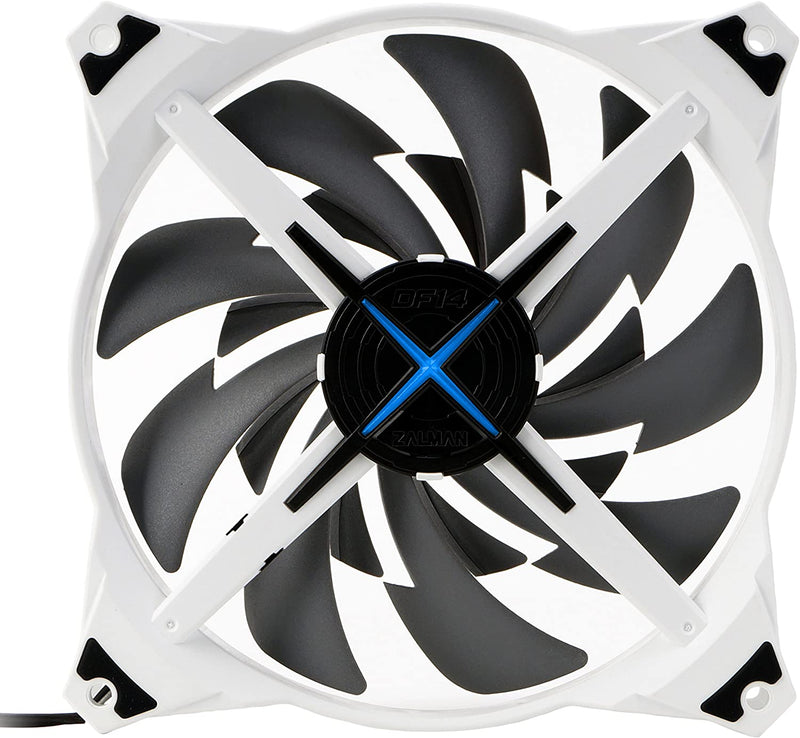

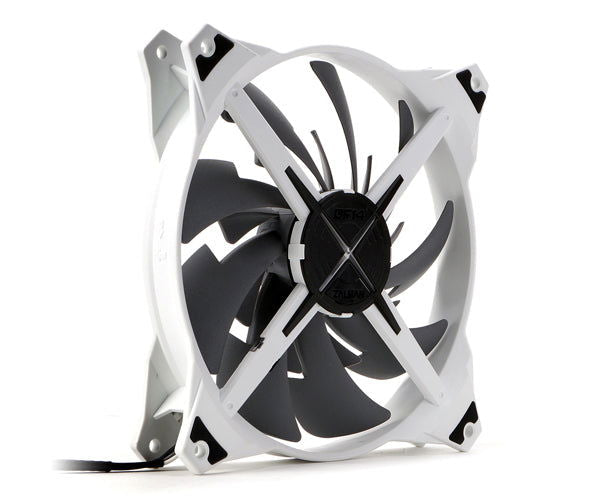

Front view of the ZM-DF14 premium dual impeller case fan, showcasing its innovative blade design for optimal airflow.

ZM-DF14
Premium Dual Impeller Case Fan

- Dual Blade Designed Impeller
- EBR (Long Life Bearing)
- Reversed-Structure Fan Housing
- 3 Step Fan Control
- Super Dynamic LED Light
- Anti-Vibration Fan Housing
- Anti-Vibration Silicone Pins

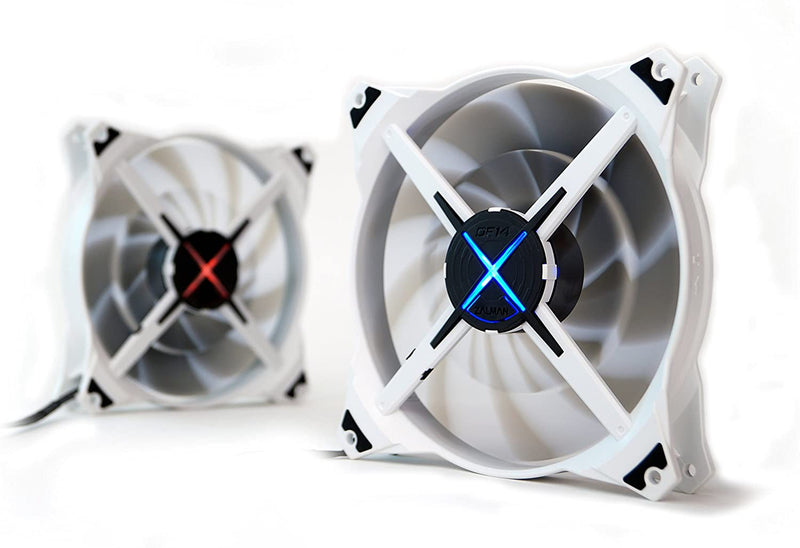

Super Dynamic LED Light
Blue or red LED with auto-blinking function applied for stunning tuning effect.

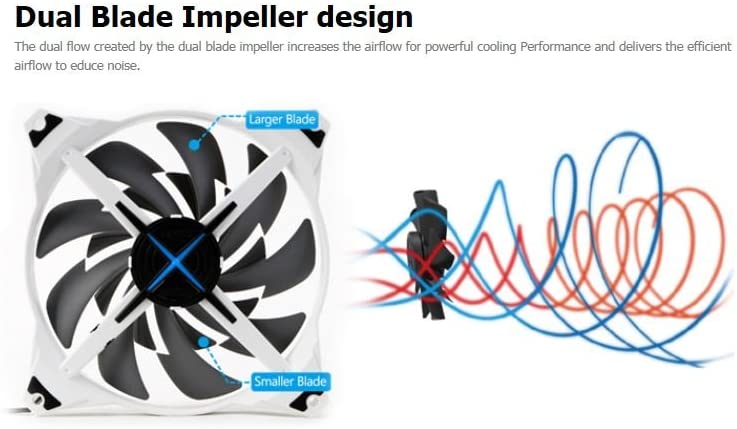

Dual Blade Impeller Design
The dual flow created by the dual blade impeller increases the airflow for powerful cooling performance and delivers efficient airflow to reduce noise.

EBR (Long Life Bearing)
EBR (Long Life Bearing) applied, minimizing noise and inflow of the dust for longer life span.

Reversed-Structure Fan Housing Design
Different from typical system fans, the housing support is designed in the reverse direction
so that friction caused by structure can be removed for more efficient airflow.

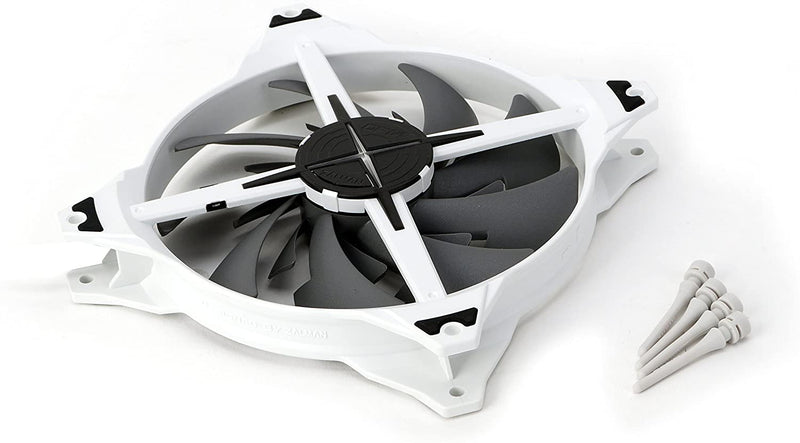

Anti Vibration Silicone Pin
Rubber fixed pins also reduce vibrations and tool-less makes it easy to mount.

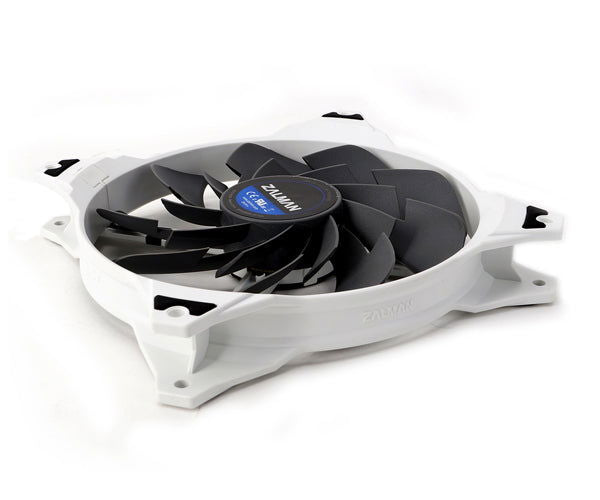

Anti-Vibration Fan Housing
Anto-vibration pad helps to reduce the vibration efficiently & allows silent operation.
