• FDC (Fluid Distribution Chamber) flow structure
  • TAC (Turbulence Acceleration Convex) Fin
  • MLS (Multi-layer Slit) Fin
  • DTH (Direct Touch Heat-pipe) Base
  • 100mm Shark Fin Blade Fan Applied

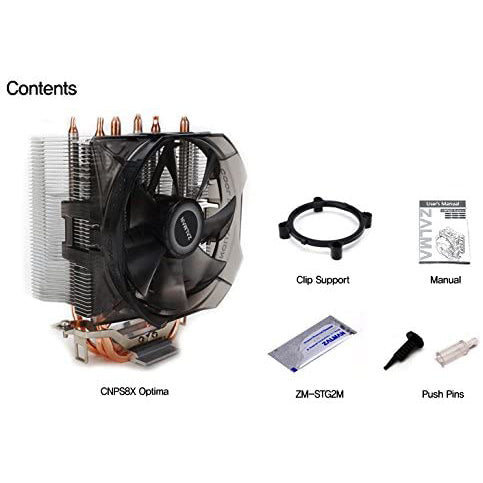

  • ZM-STG2M provided
  • Easy & Simple Installment



Cautionary Notes

  1. Avoid inserting objects or hands into the fan while it is in operation to prevent product damage and injuries.
  2. Do not ingest the Thermal Grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If ingested or irritation persists, seek medical attention.
  3. To prevent possible injuries, gloves must be worn while handling this product.
  4. Excessive force exerted on the fan may cause damage to the fan and/or system.
  5. Use and keep product away from reach of children and pets.
  6. Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
  7. During transportation of the system, the cooler must be removed.
  8. Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
  9. Product design and specifications may be revised to improve quality and performance.
  10. Liquid metal thermal grease unlike normal thermal grease it contains electrical conductivity and causes aluminum cooler to rust therefore please avoid using it. Corrosion and short circuits caused by using aluminum cooler are users' responsibility, so please read this carefully before using. (ex: Liquid Pro, Liquid Ultra, etc)


Model CNPS8X Optima
Dimensions
110(L) x 81(W) x 148.5(H)mm
Materials Pure Aluminum
Weight 375g
Fan Dimensions
100Ø x 25(H)mm
Fan Bearing Type
Long Life Bearing
Fan Speed
1,200~2,100 RPM ± 10%
Fan Noise Level
18.2~30.0 dB(A) ± 10%
Fan Speed Control PWM (Pulse Width Modulation)
Connector 4Pin
Input Voltage 12V
Termal Grease ZM-STG2M
Socket Compatibility Intel: LGA1200/1156/1155/1151/1150/
115x, AMD: AM4/AM3+/AM3/AM2+/
AM2/FM2+/FM2
CNPS8X Optima

ZALMAN CNPS8X OPTIMA
Shark Fin Blade CPU Cooler

- FDC (Fluid Distribution Chamber) flow structure
- TAC(Turbulence Acceleration Convex) Fin
- MLS (Multi-layer Slit) Fin
- NCA (Near field Cooling Air Guide)
- DTH (Direct Touch Heat-pipe) Base
- Shark Fin Blade Fan Applied

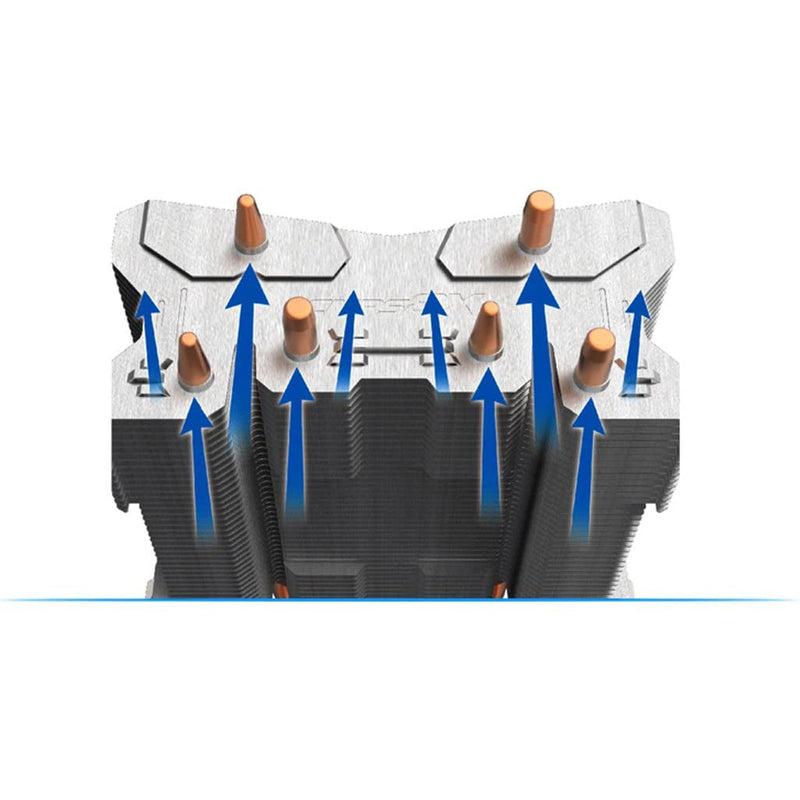

FDC (Fluide Distribution Chamber) Flow Structure
Flow efficiency has been maximized by increasing the air pressure via chamber formed between fan and the heat sink and distributing it equally throughout the entire heat sink.

TAC (Turbulence Acceleration Convex) Fin
Heat sink's bumpy shape has shortened the air movement distance between the fan and the heat pipe, transferring function via speeding up the hot air flow.

MLS (Multi-layer Slit) Fin
The Slit fin optimized for movement reduces resistance of air flow and covers wider surface area for heat transfer, which allows maximized heat sink function.

NCA (Near fideld Cooling Air Guide)
By distributing the air that is derived from the fan and not the hot air from heat sink, it cools down the surroundings of motherboard and provides a more stabilized system.

DTH (Direct Touch Heat-pipe) Base
Direct Touch Heat-pipe (DTH) Base technology transfers the CPU's heat directly to heat-pipes, thereby minimizing heat resistance and maximizing cooling performance.

100mm Shark Fin Blade Fan Applied
Shark Fin Blade Fan is optimized for air flow and therefore it drastically decreases the air turbulence that is caused when the fan is operating. It also minimizes the noise and vibration and increases the fan power.
