• Improved cooling performance by increasing the heat dissipation area 15% with the 4D stereoscopic corrugated cooling fin
  • 350 individual airflow passages are formed to improve the straightness of the airflow
  • Application of RDTH (Reverse Direct Touch Heatpipe), IHD (Interactive Heatpipe transfer Design) for excellent performance with minimum heat resistance
  • 140mm Dual-Blade spider fans provide maximum cooling performance with unique RGB effect (ZALMAN Patent), Supports motherboard addressable RGB sync (3-Pin, 5V)
  • Compatible with  Intel LGA2066/2011-V3/2011/1200/115X & AMD AM4/AM3+/AM3
  • 5 years warranty (Zalman High End CPU Cooler Only: CNPS20X, CNPS17X, CNPS16X)


Model CNPS20X
Dimensions
140 x 170 x 165(H)mm
Materials Pure Aluminum, Pure Copper
Weight 1,300g
Heat Dissipation Area 15,242㎠
Heat Pipe 6
TDP 300W
Fan Dimensions
140 x 140 x 26(H)mm
Fan Bearing Type
FDB (Fluide Dynamic Bearing)
Fan Speed 800~1,500 RPM ± 10%
MAX Fan Noise Level
29.0 dB(A) ± 10%
MAX Fan Air Flow
61 CFM
MAX Fan Air Pressure
1.1mm H₂O
Fan Life Span
100,000 hours
Fan Connector Type Fan: 4-Pin PWM, LED: 3-Pin Addressable
Fan Control Method PWM Control
Rated Voltage Fan: 12V, LED: 5V
Rated Current Fan: 0.28A, LED: 0.3A
Power Consumption Fan: 3.36W, LED: 1.5W
Socket Compatibility Intel: LGA2066/2011-V3/2011/1200/
115X CPUs, AMD: AM4/AM3+/AM3 CPUs
RGB CPU cooler with dual tower heatsinks, vibrant LEDs, and advanced cooling for high-performance systems.

ZALMAN CNPS20X
CPU Cooler with 4D Patented Corrugated Fin Design
Reverse DTH Technology RDTH is combined with an Interactive Heatpipe Transfer Design IHD for extreme efficiency in the heat transfer from the CPU to heatsink, resulting in extraordinary cooling performance

- Proven Extreme Performance
- ARGB 140mm Fans
- Built for Advanced Cooling
- Intel: LGA2066/2011-V3/2011/1200/115X CPUs
- AMD: AM4/AM3+/AM3 CPUs

ZALMAN's Patented Technology Dual Blade Impeller
The dual flow structure generated by ZALMAN's patented dual blade increases the CFM by pulling the wind from the outside to the inside and increases the wind straightness to creat strong cooling performance.

Minimizing Vibration & Noise by Implementing Biomimetics
The housing leg structure of 4 x 2 absorbs the noise and vibration generated by the rotation of the impeller, providing a stable and quiet user environment.

Addressable RGB Sync (3-Pin)
RGB LEDs utilizing the straightness characteristic of LEDs are placed in the housing to realize a distinctive LED pattern.

FDB (Fluid Dynamic Bearing) Fan
FDB, which is higher than sleeve bearing, is a thin oil layer that minimizes friction caused by the rotation of the shaft to minimize noise and heat, providing quietness and 100,000 hours lifespan.

Applied ZALMAN's Original LED Technology Maximize the Tuning Effect
RGB LEDs utilizing the straightness characteristic of LEDs are placed in the housing to realize a distinctive LED pattern.

FBD Fan Stays Quiet Even for Long Usage
Unlike other conventional bearing fan, FDB fan stays extremely quiet even after a long period of usage.

ZALMAN Dual Blade Fan
Patent# 10-1342746

High Thermal Conductivity ZM-STC8 (included)
The ZM-STC8, which comes with the CNPS20X, fills the fine space between the CPU and 20X, boosting the cooling effect and providing excellent cooling performance.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
Kavin
Nice cooler

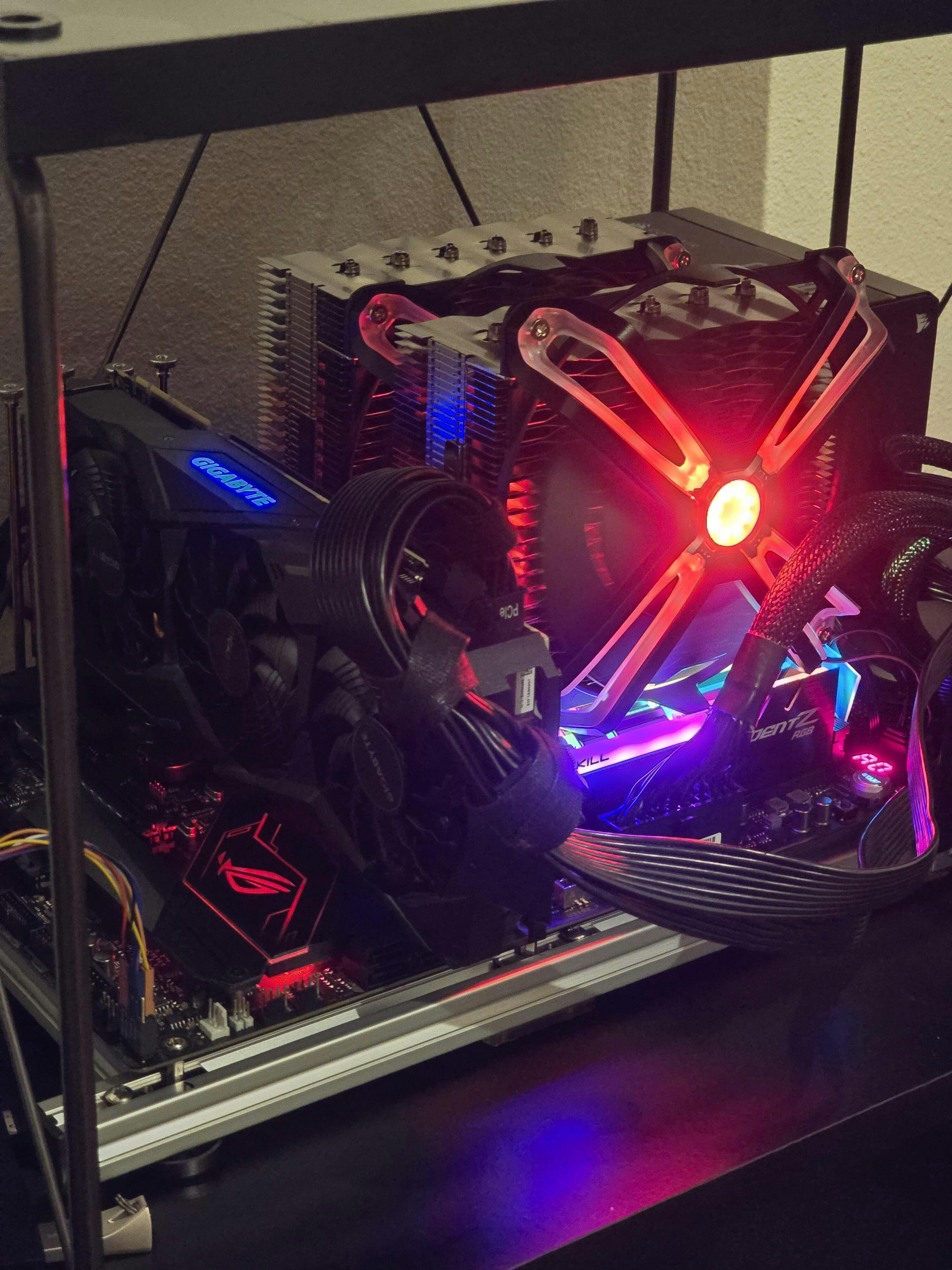

There are many cpu air cooler choices now aday, with and without rgb, but their shapes and pattern are too common. This one had good revirew with GN when it came out and unique look. I get it to cool my i7 8700k.
