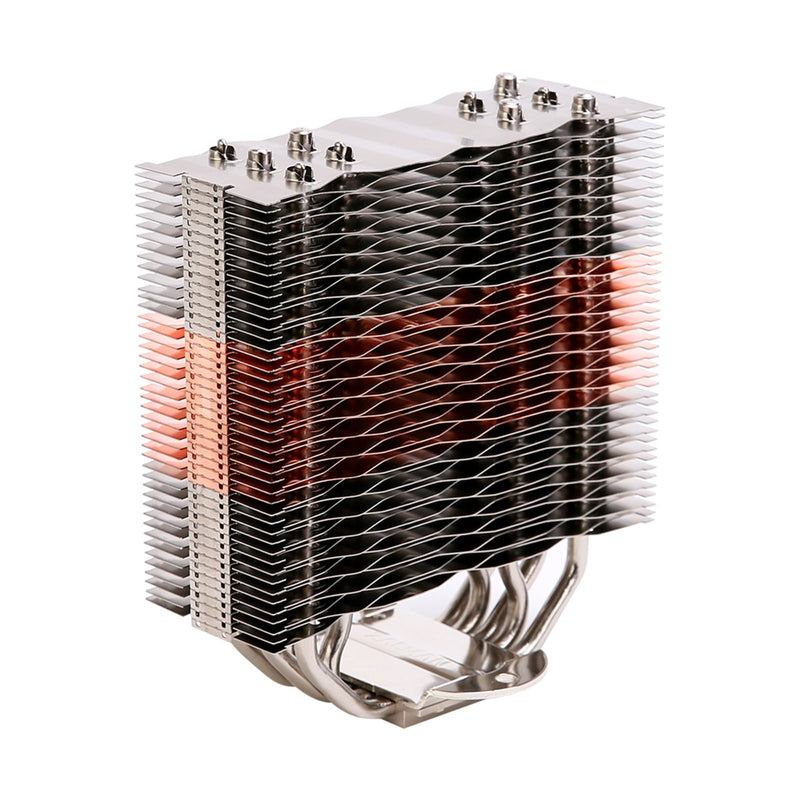

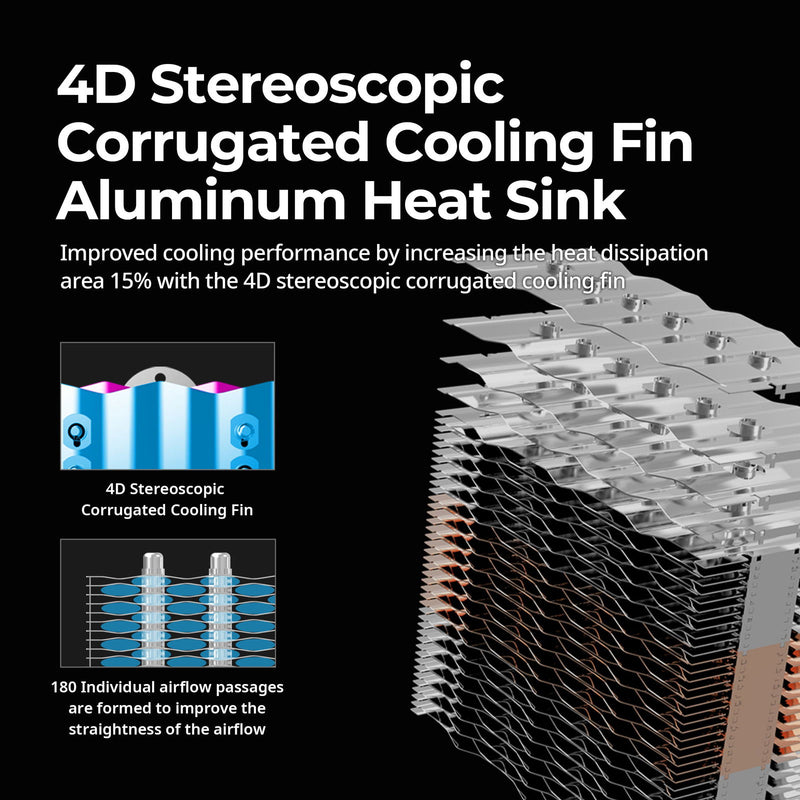

• Zalman CNPS 17X, Improved cooling performance by increasing the heat dissipation area 15% with the 4D stereoscopic corrugated cooling fin
  • 180 individual airflow passages are formed to improve the straightness of the airflow
  • Application of RDTH (Reverse Direct Touch Heatpipe) for excellent performance with minimum heat resistance
  • 140mm Dual-Blade spider fans provide maximum cooling performance with unique RGB effect (ZALMAN Patent), Supports motherboard addressable RGB sync (3-Pin, 5V)
  • Compatible with  Intel LGA2066/2011-V3/2011/1200/115X & AMD AM4/AM3+/AM3
  • 5 years warranty (Zalman High End CPU Cooler Only: CNPS20X, CNPS17X, CNPS16X)


Model CNPS17X
Dimensions
140(L) x 100(W) x 160(H)mm
Materials Pure Aluminum, Pure Copper
Weight 700g
Heat Dissipation Area 6,243㎠
Heat Pipe 5
TDP 200W
Fan Dimensions
140 x 140 x 26(H)mm
Fan Bearing Type
FDB (Fluid Dynamic Bearing)
Fan Speed 800~1,500 RPM ± 10%
MAX Fan Noise Level
29.0 dB(A) ± 10%
MAX Fan Air Flow
61 CFM
MAX Fan Air Pressure
1.1mm H₂O
Fan Life Span
100,000 hours
Fan Connector Type Fan: 4-Pin PWM, LED: 3-Pin Addressable
Fan Control Method PWM Control
Rated Voltage Fan: 12V, LED:5V
Rated Current Fan: 0.28A, LED: 0.3A
Power Consumption Fan: 3.36W, LED: 1.5W

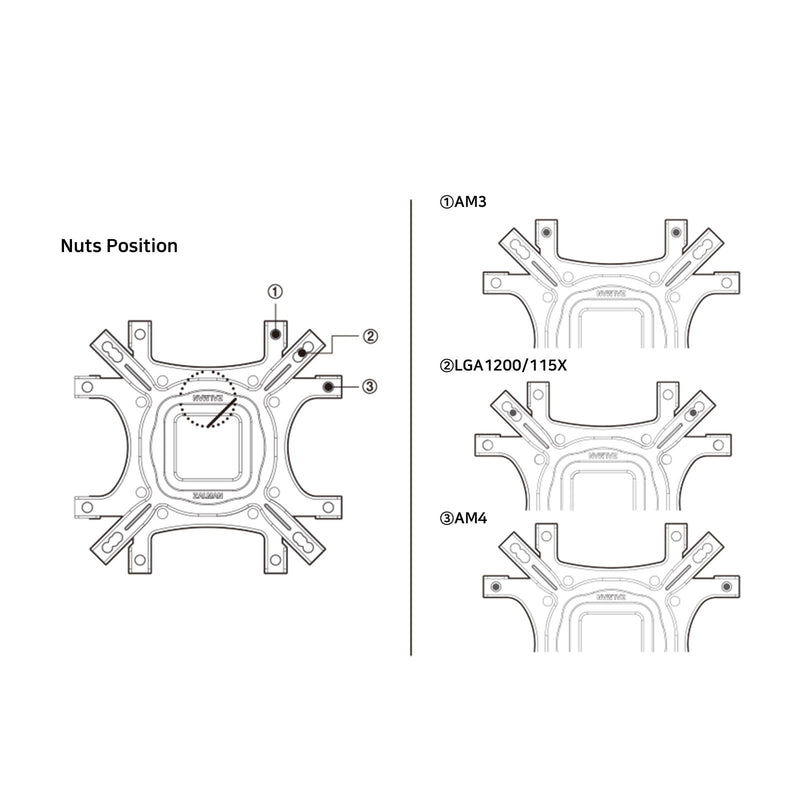

Socket Compatibility Intel: LGA2066/2011-V3/2011/1200/
115X CPUs, AMD: AM4/AM3+/AM3 CPUs

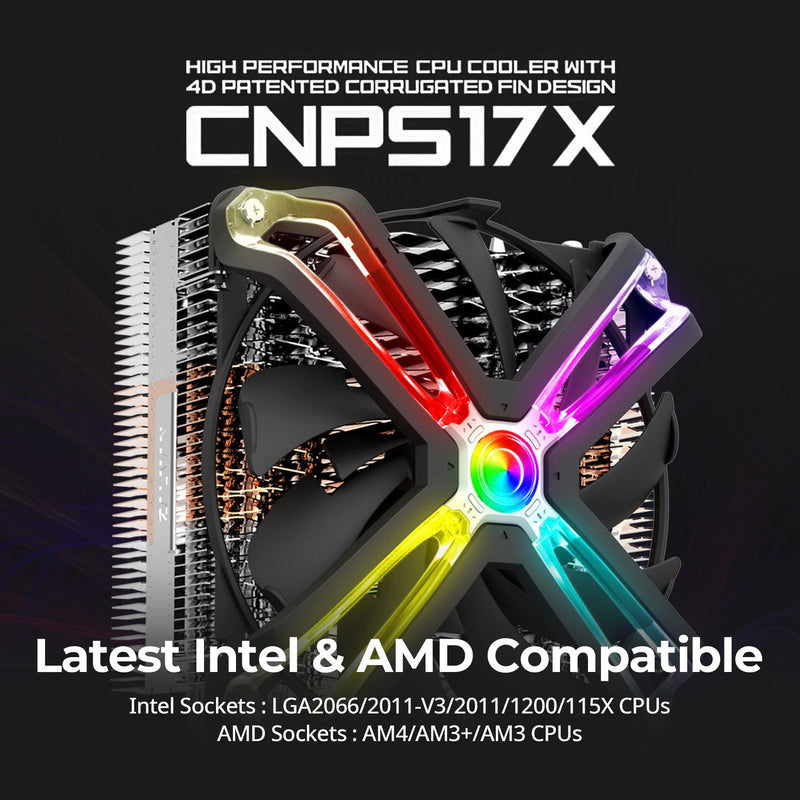

Zalman CNPS17X

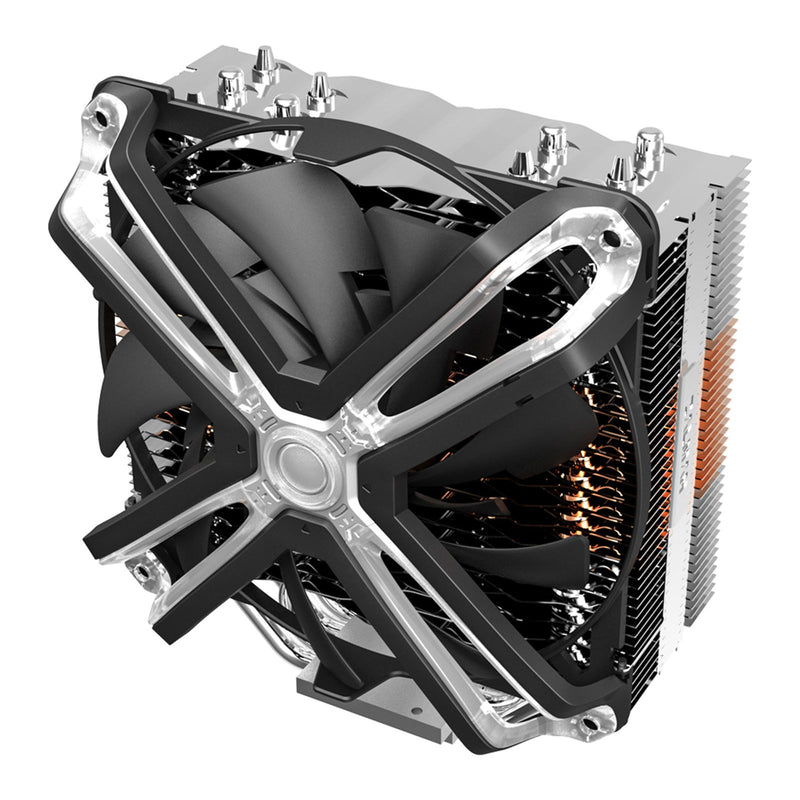

ZALMAN CNPS17X
High Performance CPU Cooler
The heatsink is composed of 180 individual airflow passages that quickly move hot air outward.

- ARGB 140mm Fan
- Built for Advanced Cooling
- Intel: LGA 2066/2011-V3/2011/1200/115X
- AMD: AM4/AM3+/AM3

ZALMAN's Patented Technology Dual Blade Impeller
The dual flow structure generated by ZALMAN's patented dual blade increases the CFM by pulling the wind from the outside to the inside and increases the wind straightness to creat strong cooling performance.

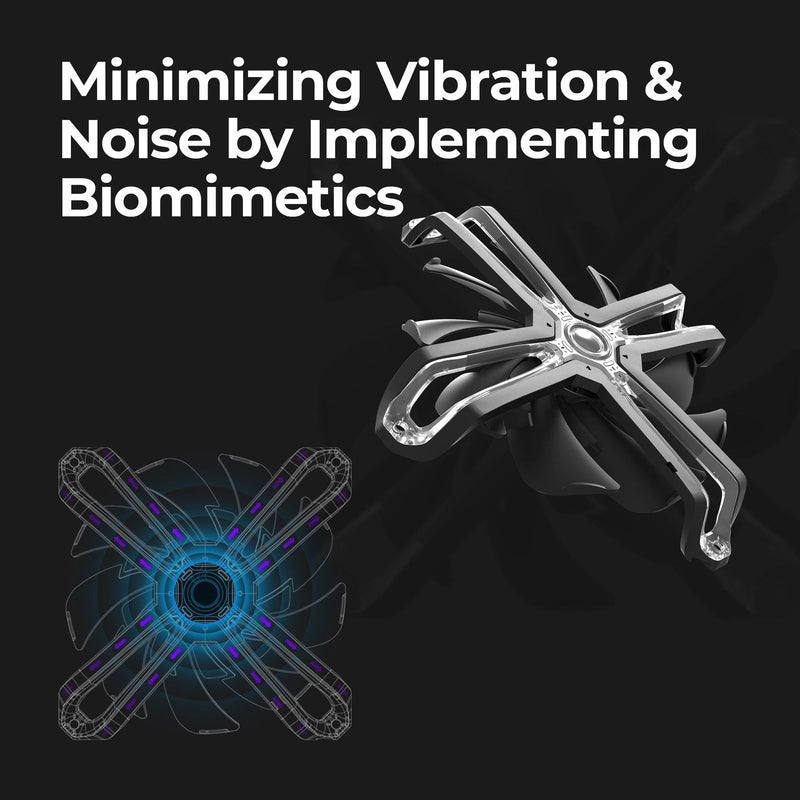

Minimizing Vibration & Noise by Implementing Biomimetics
The housing leg structure of 4 x 2 absorbs the noise and vibration generated by the rotation of the impeller, providing a stable and quiet user environment.

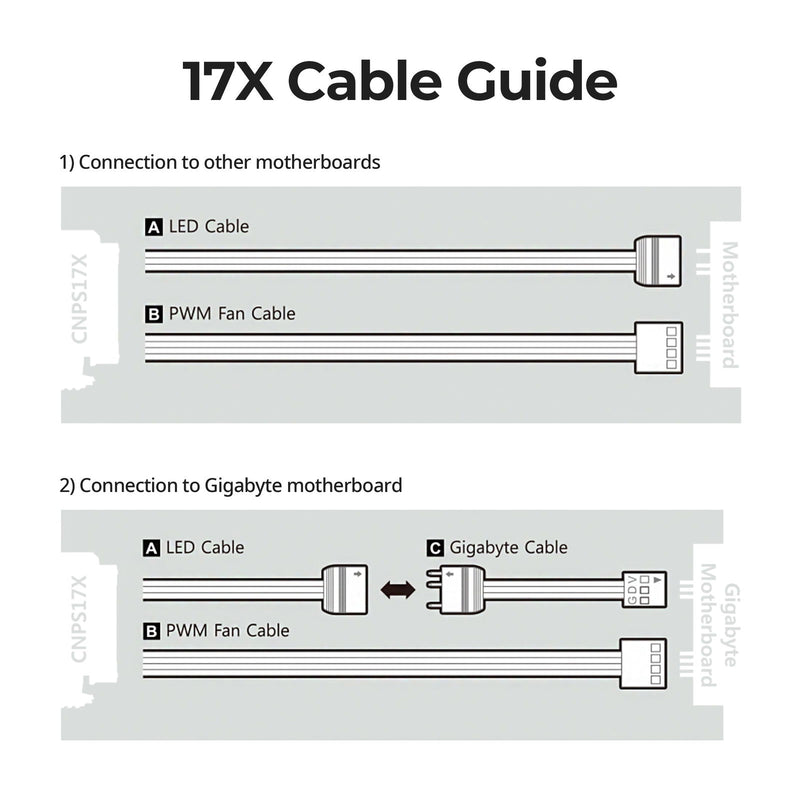

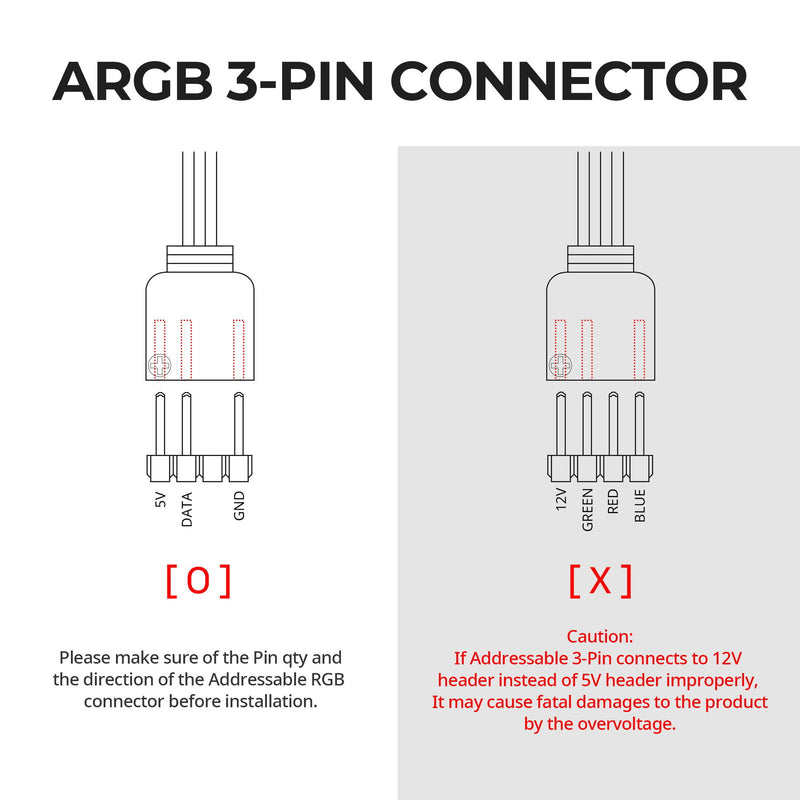

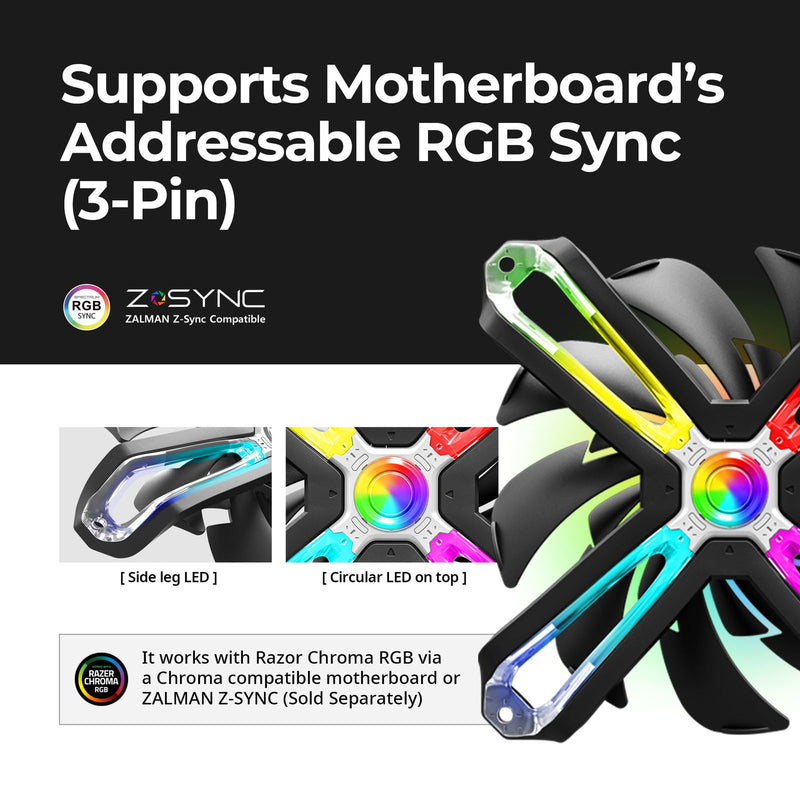

Supports Motherboard's Addressable RGB Sync (3-Pin)
By connecting to the motherboard, various colors and color synchronization can be realized by software, which gives innovative solution than the existing inconvenience and limited control environment.

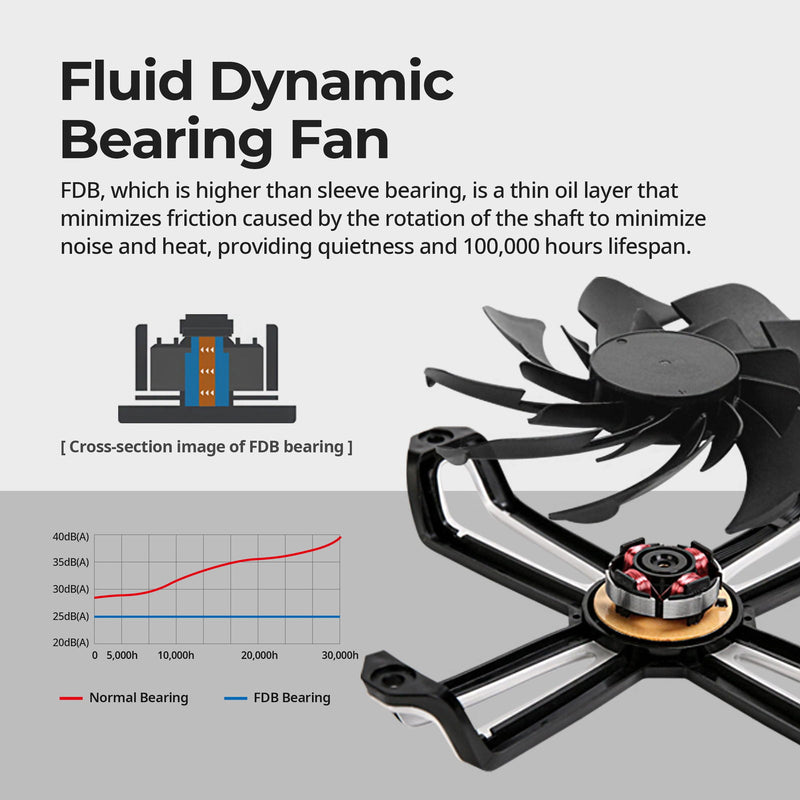

FDB (Fluid Dynamic Bearing) Fan
FDB, which is higher than sleeve bearing, is a thin oil layer that minimizes friction caused by the rotation of the shaft to minimize noise and heat, providing quietness and 100,000 hours lifespan.

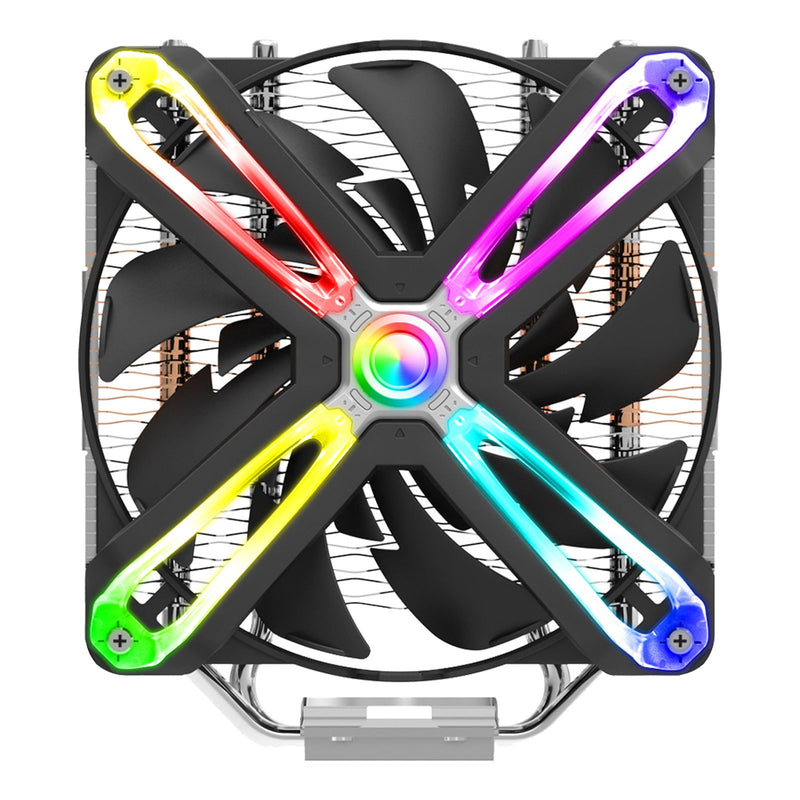

Applied ZALMAN's Original LED Technology Maximize the Tuning Effect
RGB LEDs utilizing the straightness characteristic of LEDs are placed in the housing to realize a distinctive LED pattern.

FBD Fan Stays Quiet Even for Long Usage
Unlike other conventional bearing fan, FDB fan stays extremely quiet even after a long period of usage.

ZALMAN Dual Blade Fan
Patent# 10-1342746

High Thermal Conductivity ZM-STC8 (included)
The ZM-STC8, which comes with the CNPS17X, fills the fine space between the CPU and 17X, boosting the cooling effect and providing excellent cooling performance.
