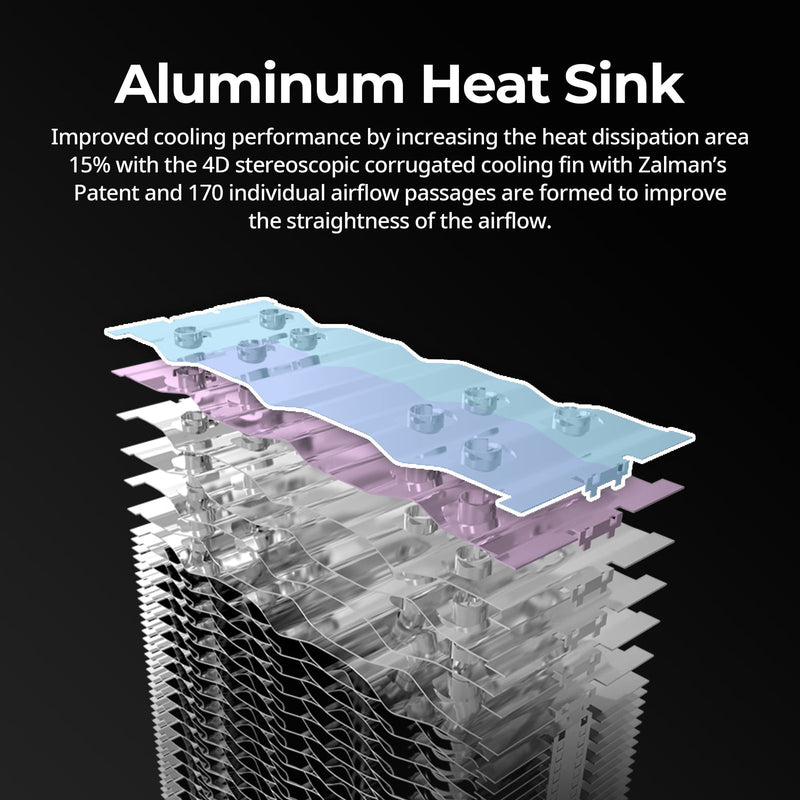

• Improved cooling performance by increasing the heat dissipation area 15% with the 4D stereoscopic corrugated cooling fin
  • 170 individual airflow passages are formed to improve the straightness of the airflow

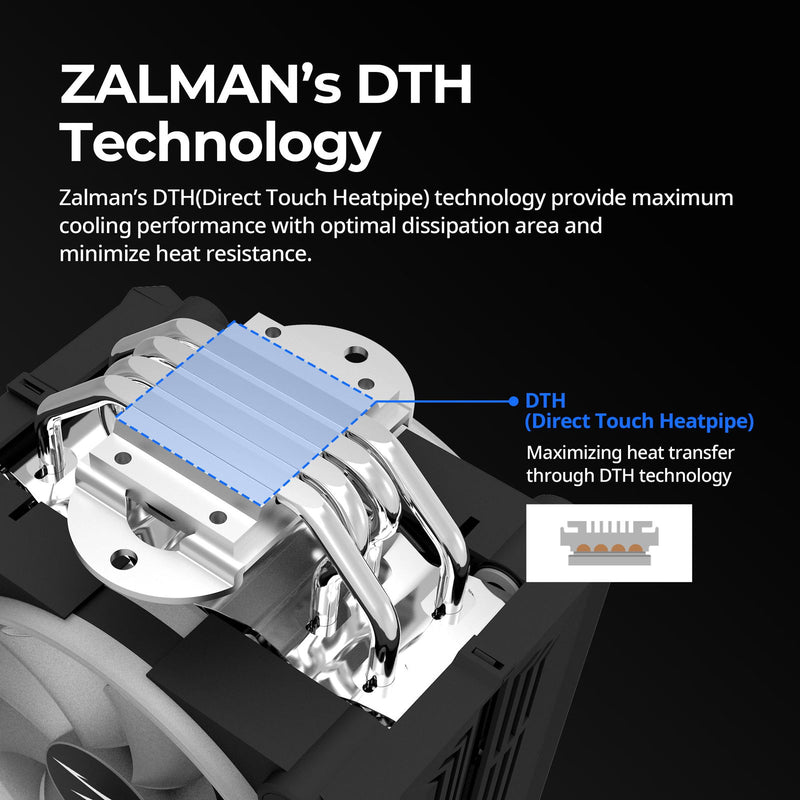

  • Application of ZALMAN DTH (Direct Touch Heatpipe) technology maximize excellent performance and minimize heat resistance

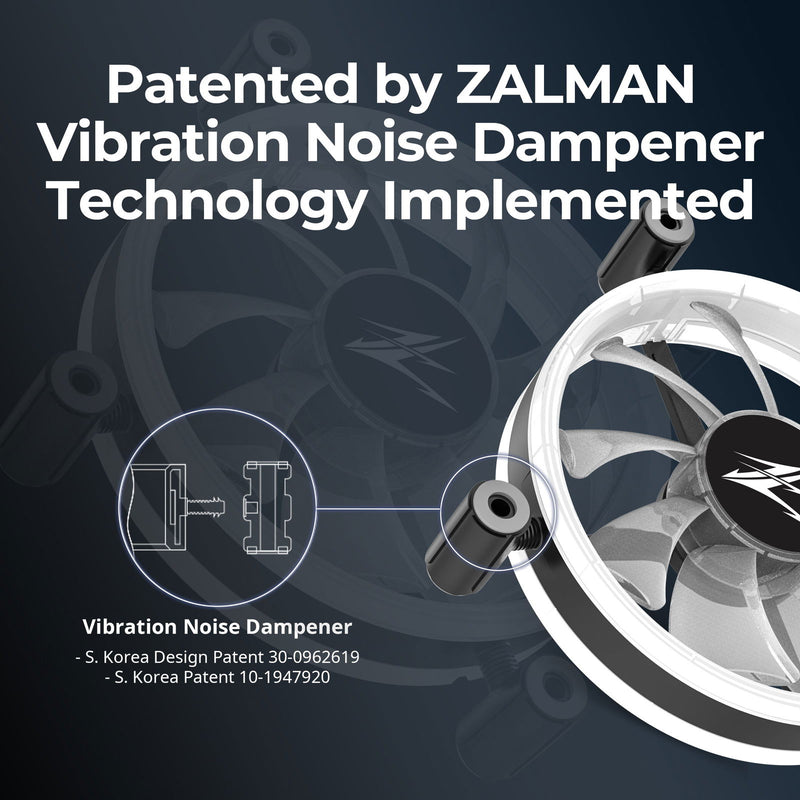

  • Maximum cooling performance and exclusive RGB tuning effects are realized through the installation of two 120-mm ring fans (LF120) equipped with a noise and vibration reduction damper, ZALMAN's patented technology by default. The tuning effect is maximized through exclusive RGB support of the top surface of the cooler and RGB support of the front and rear ring fans that enable the 3D RGB effect. Compatible with AM3 AM4 and Intel 115X, 2066, 2011 V3, 2011 & compatible with LGA 1200
  • 5 years warranty

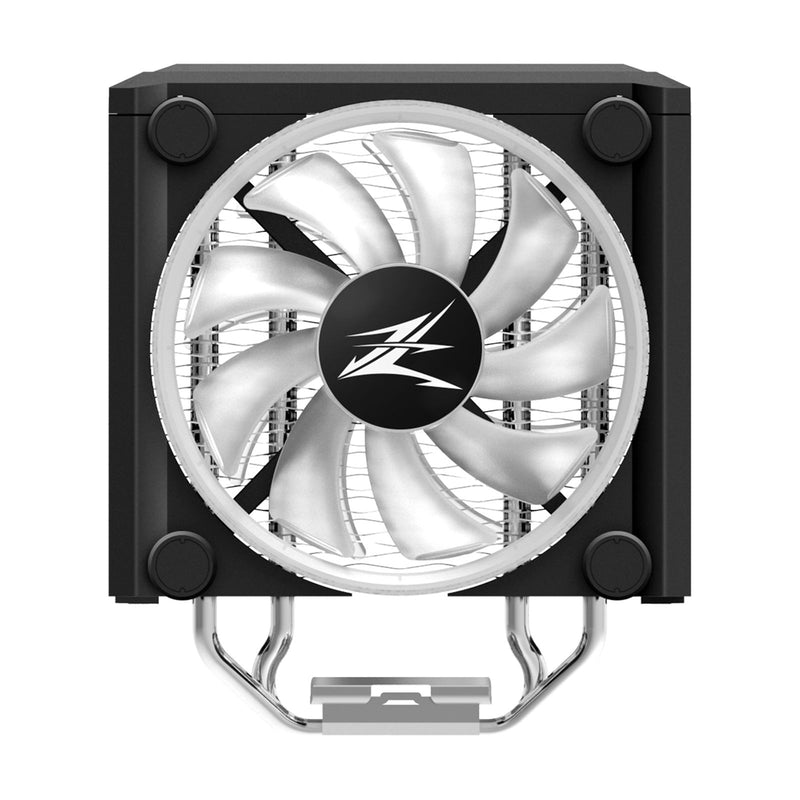

Model CNPS16X Black
140(L) x 100(W) x 165(H)mm
Materials Pure Aluminum, Pure Copper, ABS
Weight 880g
Heat Dissipation Area 5,177㎠
Heat Pipe 4
TDP 180W

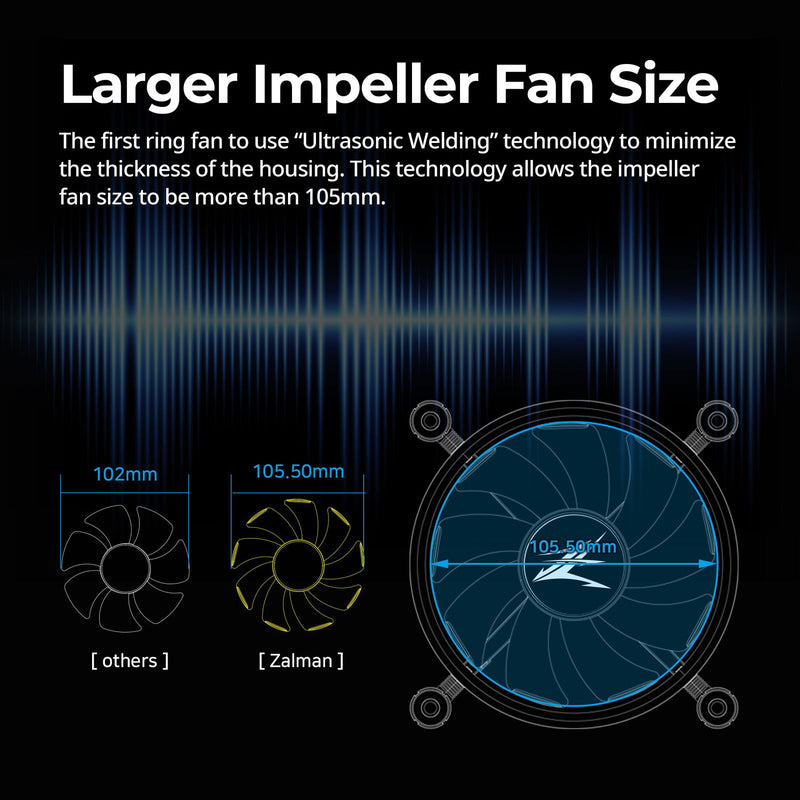

Fan Dimensions
120 x 120 x 26(H)mm
Fan Bearing Type
EBR Bearing
Fan Speed 800~1,500 RPM ± 10%
MAX Fan Noise Level
27.0dB(A) ± 10%
MAX Fan Air Flow
49 CFM
MAX Fan Air Pressure
1.21mm H₂O
Fan Life Span
50,000 hours

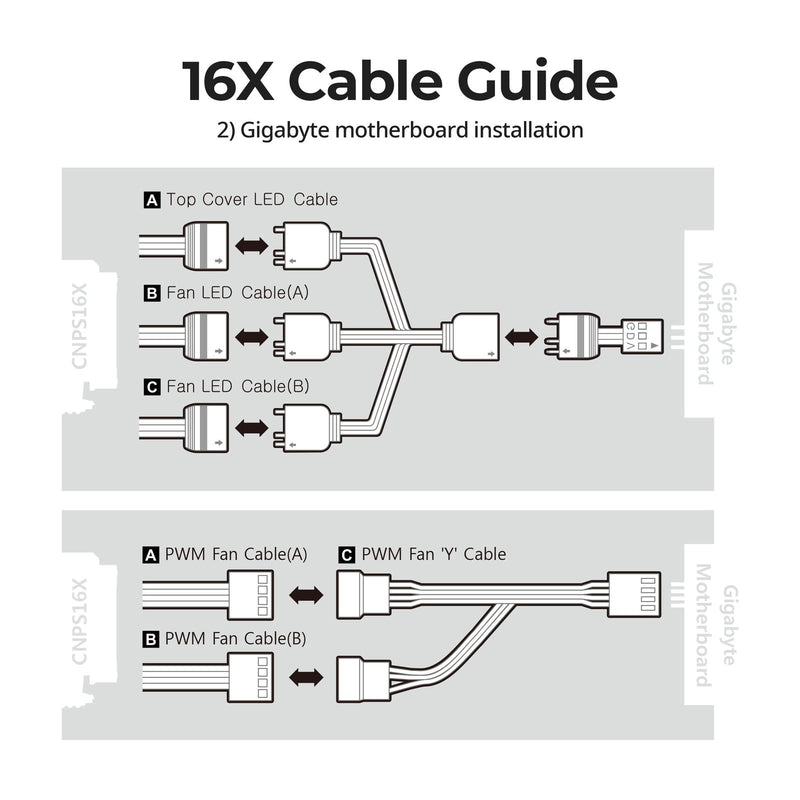

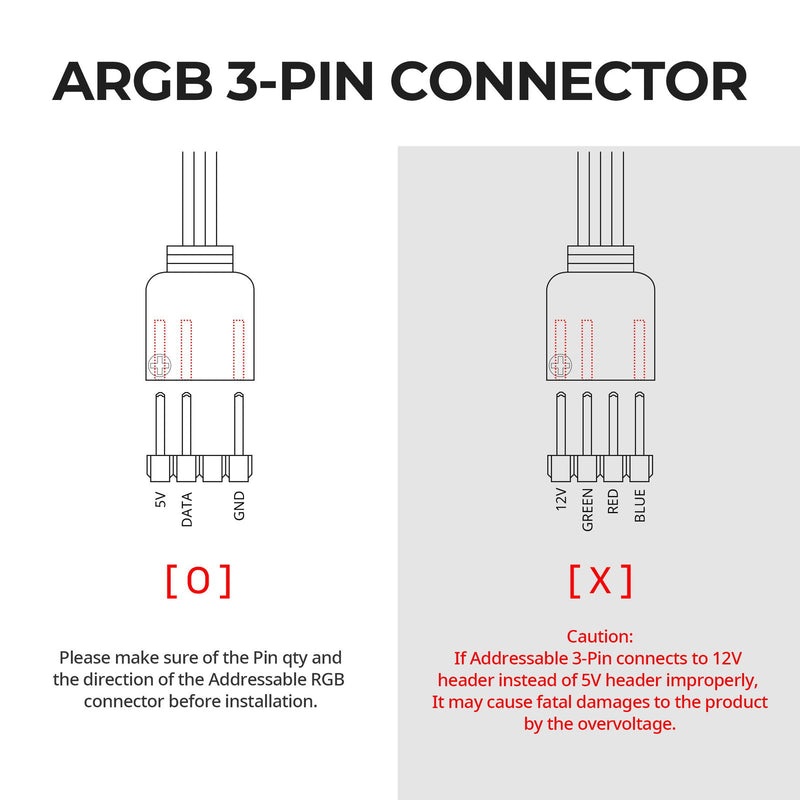

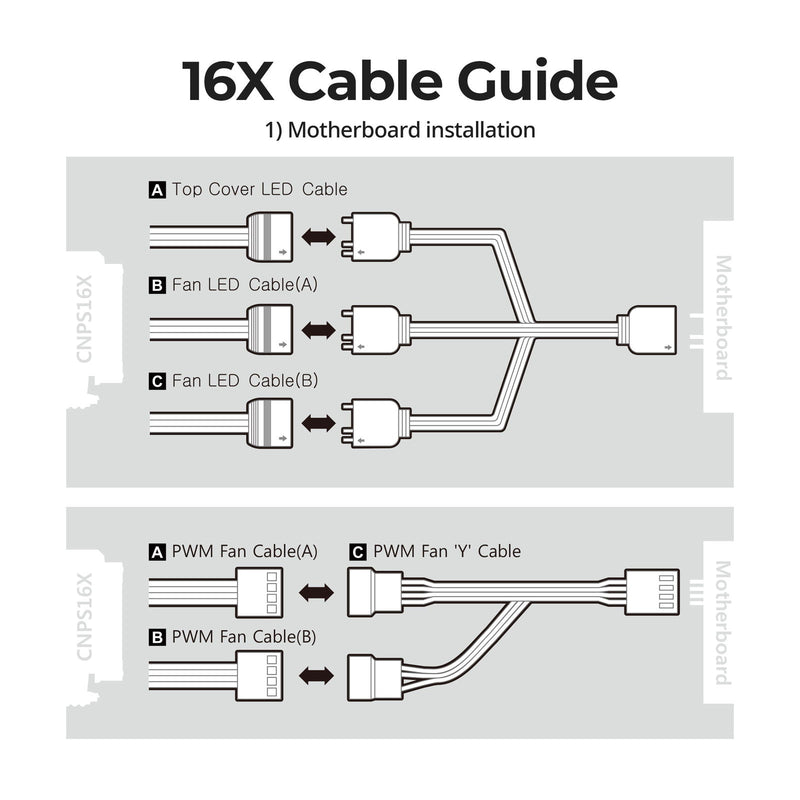

Fan Connector Type Fan: 4-Pin PWM, Fan LED: 3-Pin Addressable, Top LED Cover: 3-Pin Addressable
Fan Control Method PWM Control
Rated Voltage Fan: 12V, Fan LED: 5V, Top LED Cover: 5V
Rated Current Fan: 0.2A, Fan LED: 0.65A, Top LED Cover: 0.7A
Power Consumption Fan: 2.4W, Fan LED: 3.25W, Top LED Cover: 3.5W

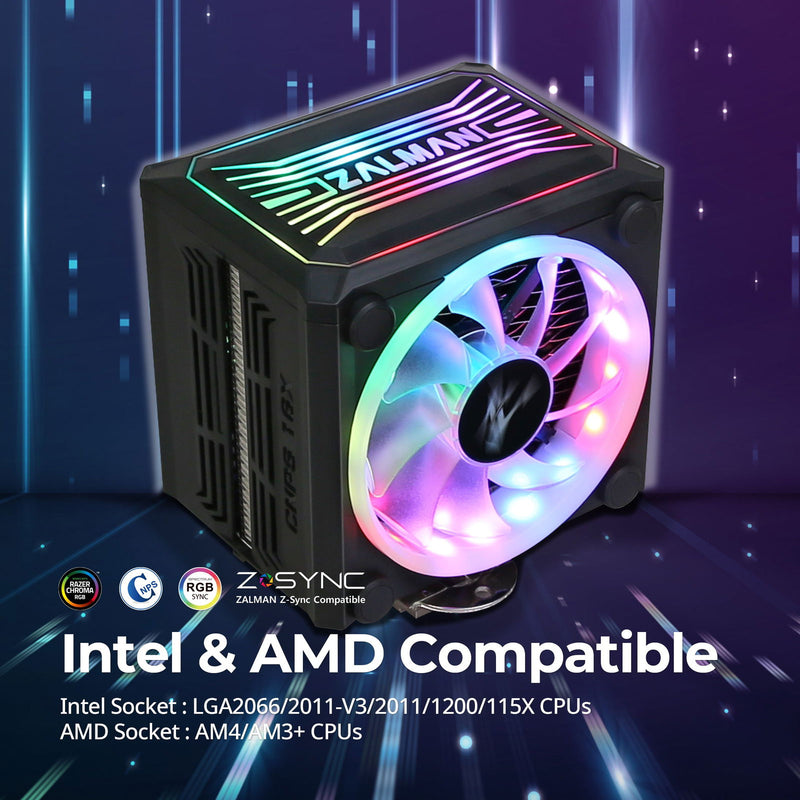

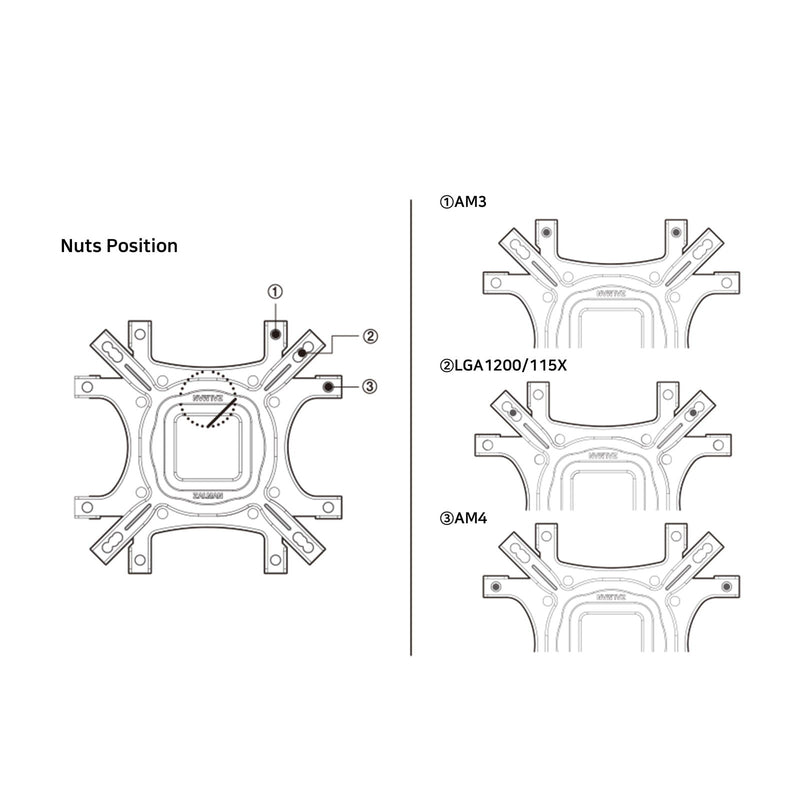

Socket Compatibility Intel: LGA2066/2011-V3/2011/1200/
115X CPUs, AMD: AM4/AM3+/AM3 CPUs

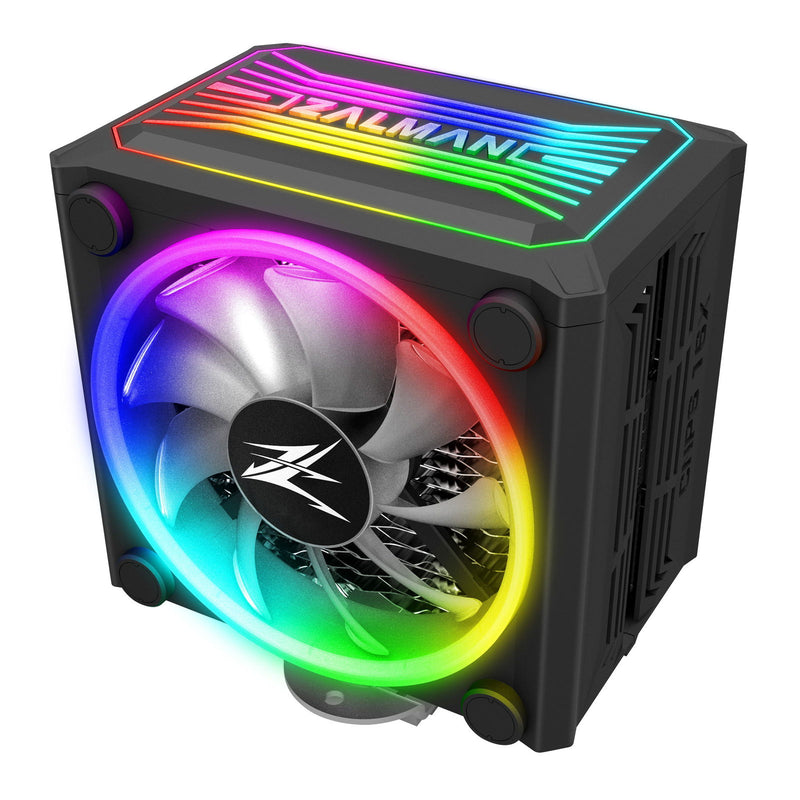

Real RGB LED CPU Cooler
The heatsink is composed of 170 individual airflow passages that quickly move hot air outward.

- EBR Bearing
- Pure Copper, Pure Aluminum, ABS
- PWM Control

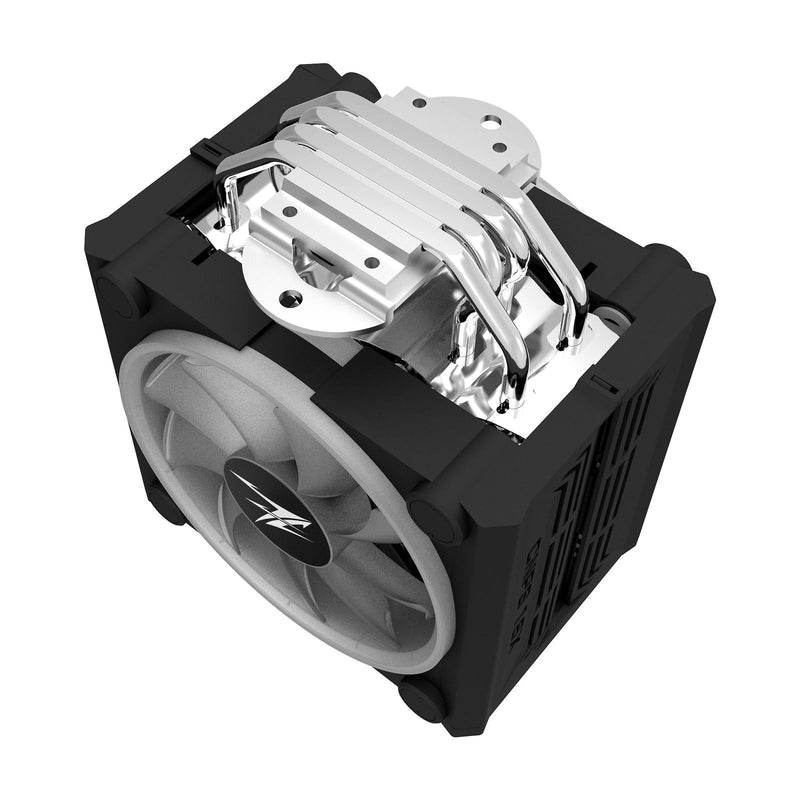

- Heatpipe x 4
- Intel: LGA2066/2011-V3/2011/1200/115X CPUs
- AMD: AM4/AM3+/AM3 CPUs
