Model CNPS10X Performa Black
Dimensions
135 x 95 x 155(H)mm
Materials Pure Aluminum, Pure Copper
Weight 860g
Heat Dissipation Area 9,271㎠
Heat Pipe 4
TDP 180W
Fan Dimensions
135 x 135 x 25(H)mm
Fan Bearing Type
EBR Bearing
Fan Speed 700~1,500RPM ± 10%
MAX Fan Noise Level
27.0dB(A) ± 10%
MAX Fan Air Flow
75,16CFM
MAX Fan Air Pressure
1.35mmH₂O
Fan Life Span
50,000 hours
Fan Connector Type 4-pin

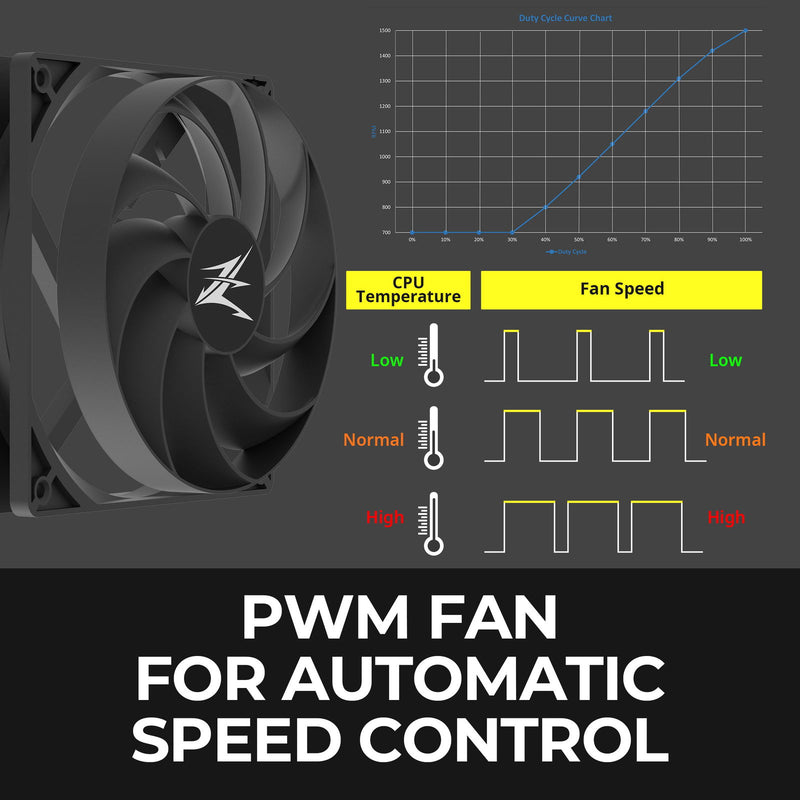

Fan Control Method PWM Control
Rated Voltage 12V DC
Rated Current 0.2A
Power Consumption 2.4W
Socket Compatibility Intel:LGA2066/2011-V3/2011/1200/115X CPUs, AMD:AM4 CPUs

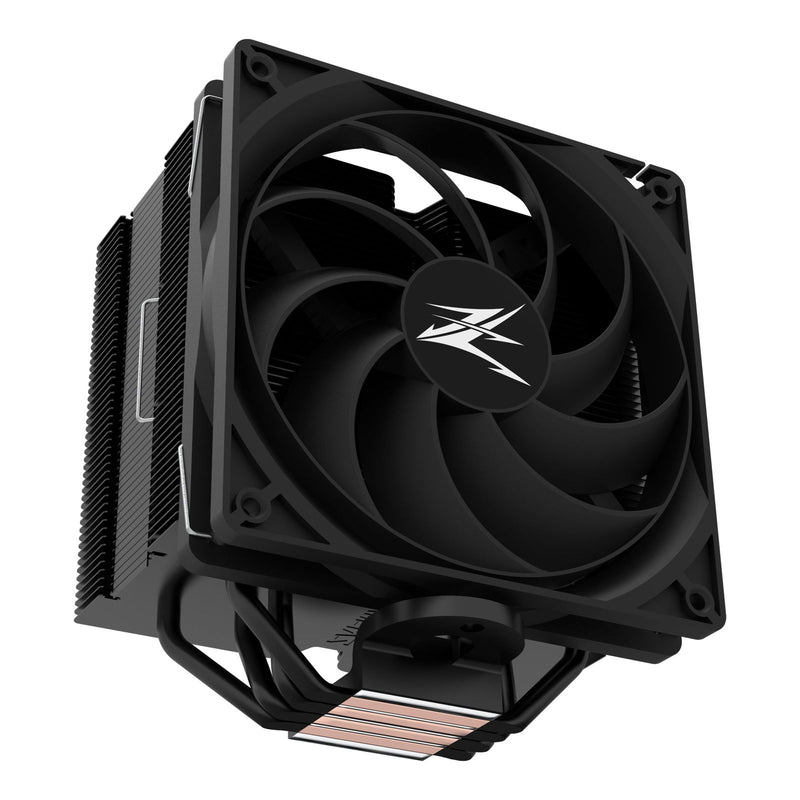

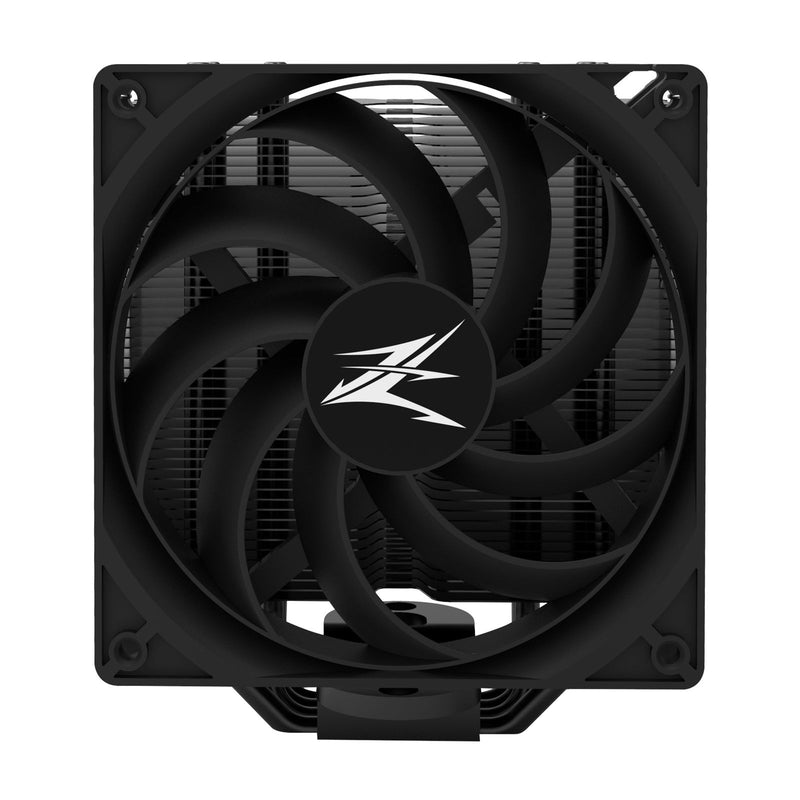

CNPS10X PERFORMA BLACK
Excellent Cooling Performance

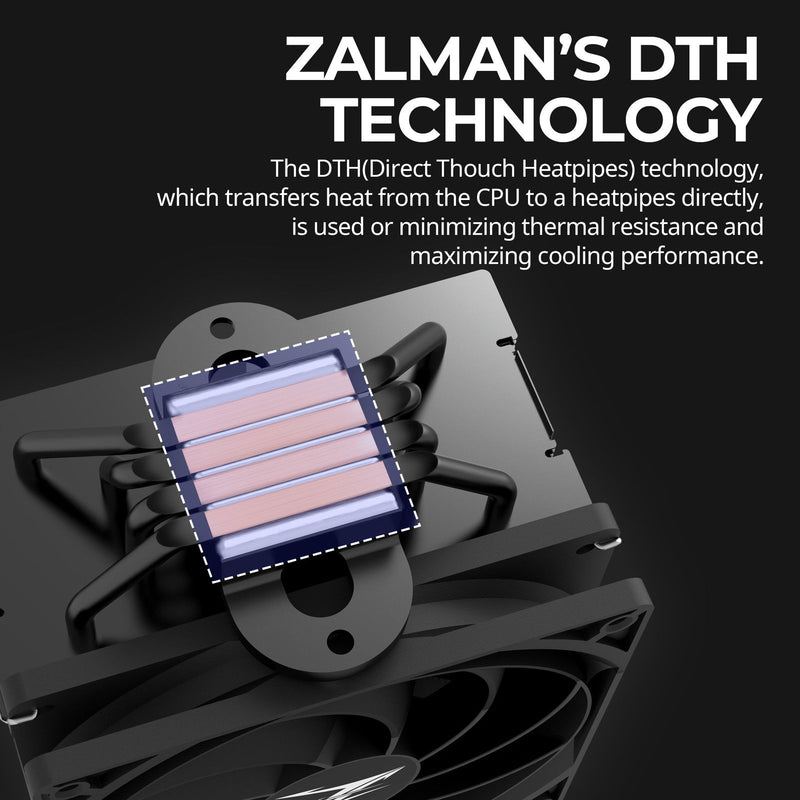

The DTH technology, which transfers heat from the CPU to a heatpipes directly, is used or minimizing thermal resistance and maximizing cooling performance.

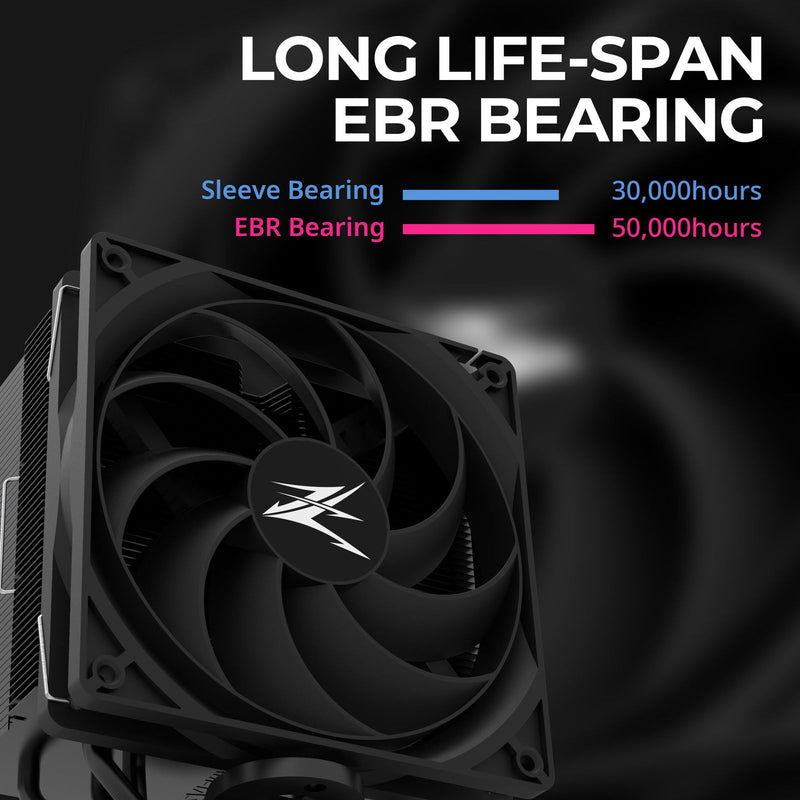

- EBR Bearing

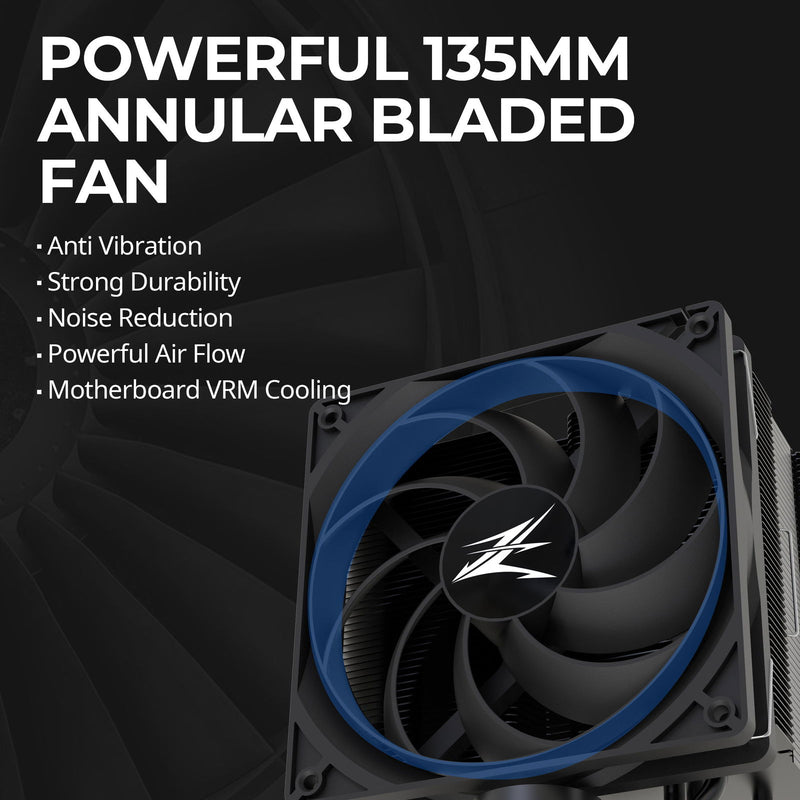

- Annular Fan
- DTH technology

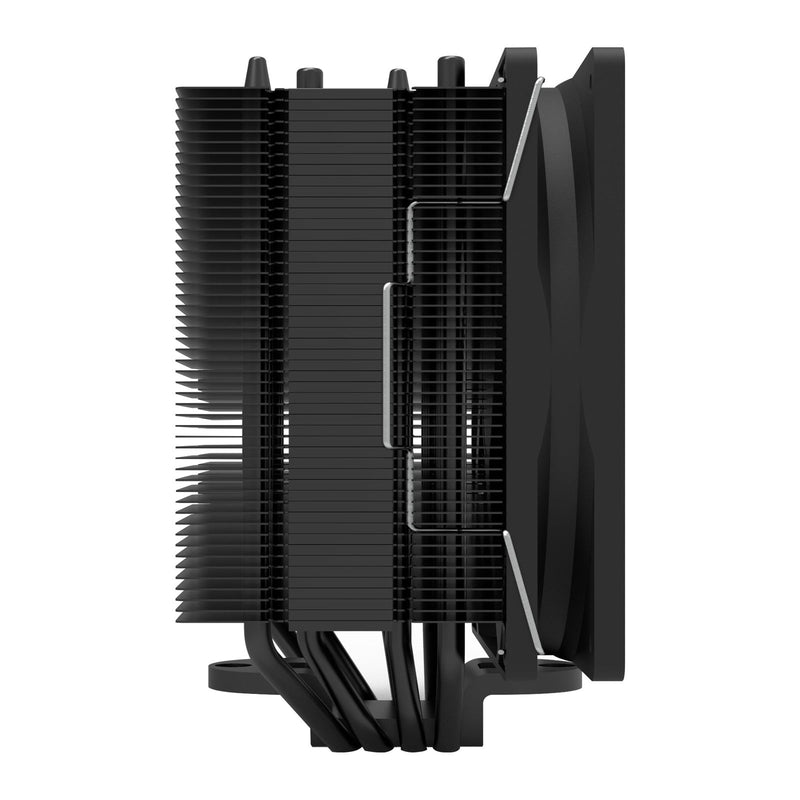

- Asymmetric Heatsink
- Heat Dissipation Area 9.271㎠
- Weight 860g
