• Direct Touch Technology: The DTH case delivers heat from the CPU to the heatsink directly to maximize cooling performance with 4 highly conductive copper heatpipes. Supports up to 180W TDP, Max Noise: 27.0 dB(A), Max Airflow: 61.52 CFM.
  • Patented Dual Blade Fan: Dual airflow from impeller structure brings strong cooling performance while reducing noise. Ultra-quiet dual blade 120mm fan with LED RGB. Runs at 800-1500 RPM.
  • Spectrum RGB LED: Add spectrum RGB lighting effect to your new desktop pc build with RGB fan and RGB top cover.

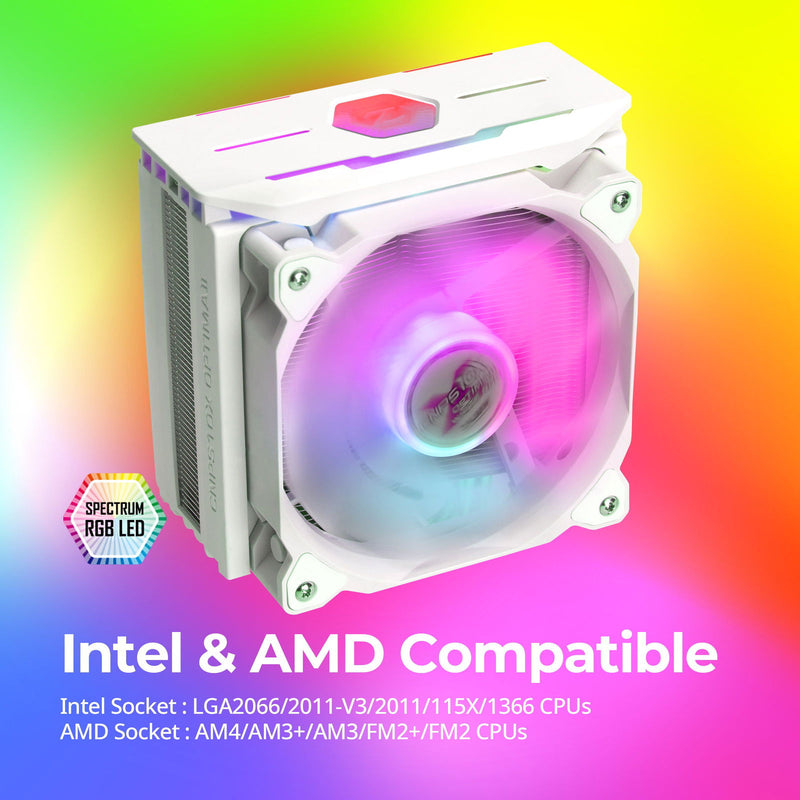

  • Socket Support: Intel: LGA 1700/2066/2011-V3/2011/115X/1366, AMD: AM5/AM4/AM3

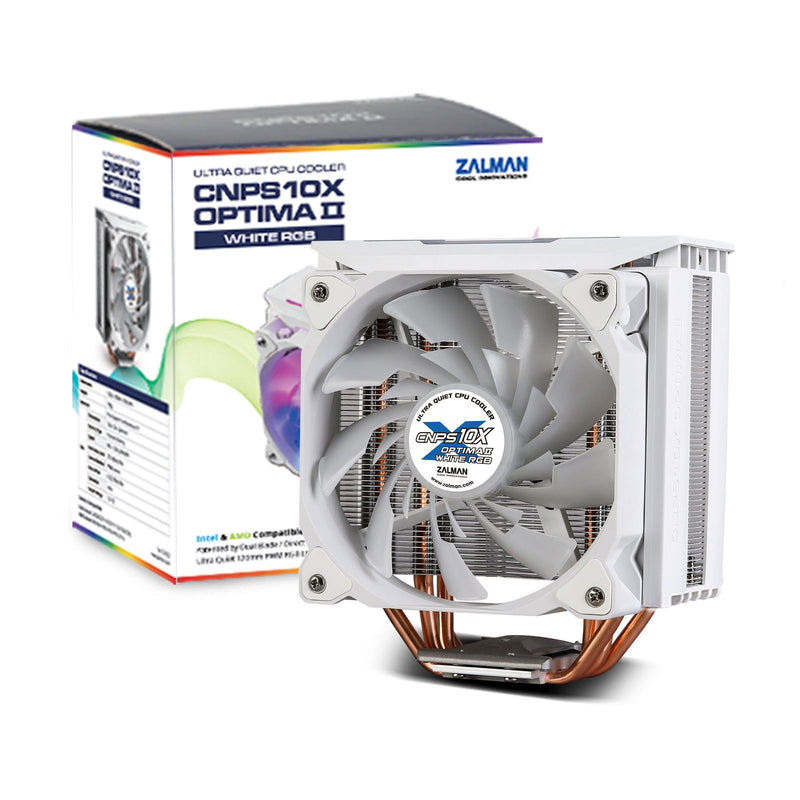

Model CNPS10X Optima II White (RGB)
Dimensions
132(L) x 85(W) x 158(H)mm
Materials Pure Aluminum, Pure Copper, Plastic
Weight 740g
Heat Dissipation Area 6,803㎠
Heat Pipe 4
TDP 180W
Fan Dimensions
120 x 120 x 25(H)mm
Fan Bearing Type
Hydraulic Bearing
Fan Speed 800~1,500 RPM ± 10%
MAX Fan Noise Level
27 dB(A) ± 10%
MAX Fan Air Flow
61,52 CFM
MAX Fan Air Pressure
1.06mm H₂O
Fan Life Span
50,000 hours
Fan Connector Type 4-pin
Fan Control Method PWM Control
Rated Voltage 12V DC
Rated Current 0.35A
Power Consumption 4.2W
Socket Compatibility Intel: LGA2066/2011-V3/2011/115X/
1366 CPUs, AMD: AM4/AM3+/AM3/
FM2+/FM2 CPUs

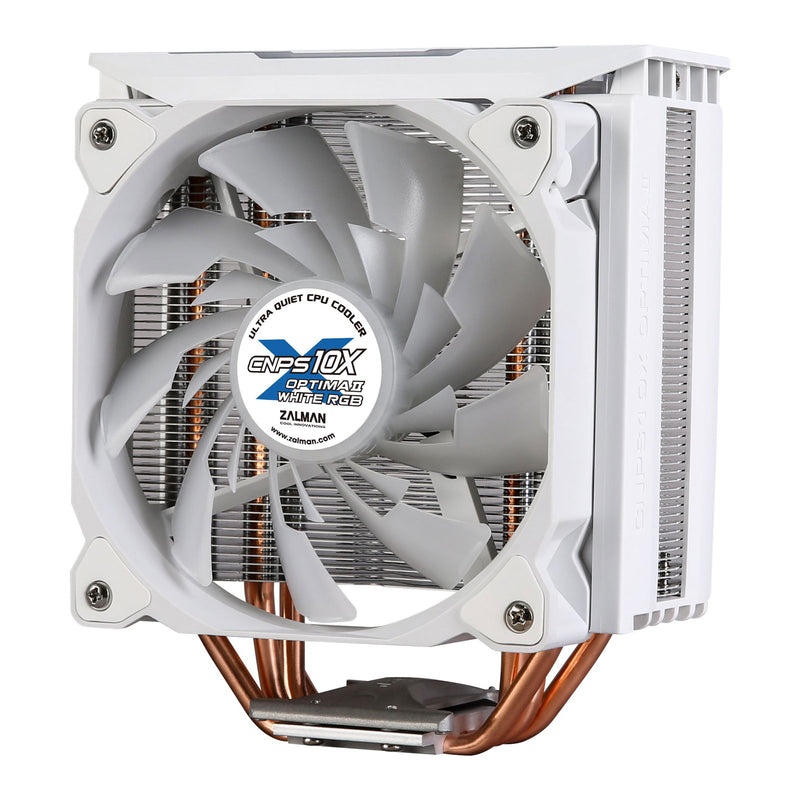

CNPS10X OPTIMA II WHITE (RGB)

CNPS10X OPTIMA II WHITE (RGB)
Zalman-Inspired Design with Full White Frame
Spectrum RGB LED lighting effect brings a perfect upgrade for your PC.

- Pre-Installed Anti-Vibration Rubber Pads
- Aluminum Heat Sinks and Heatpipes
- Powerful Dual Blade Fan
- Spectrum RGB LED

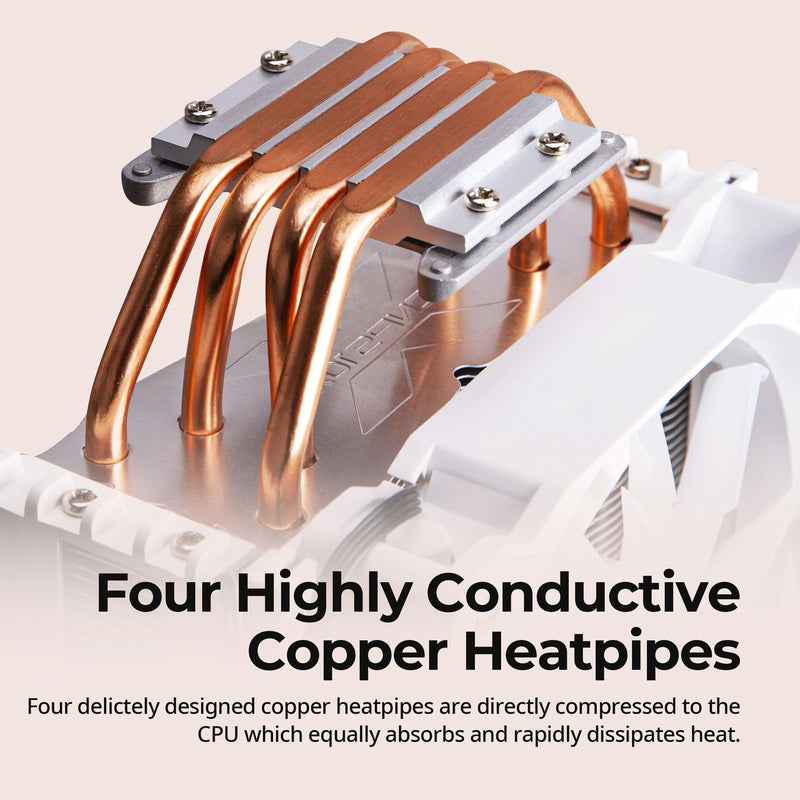

Four Highly Conductive Copper Heatpipes
Four delicately designed copper heatpipes are directly compressed to the CPU which equally absorbs and rapidly dissipates heat.

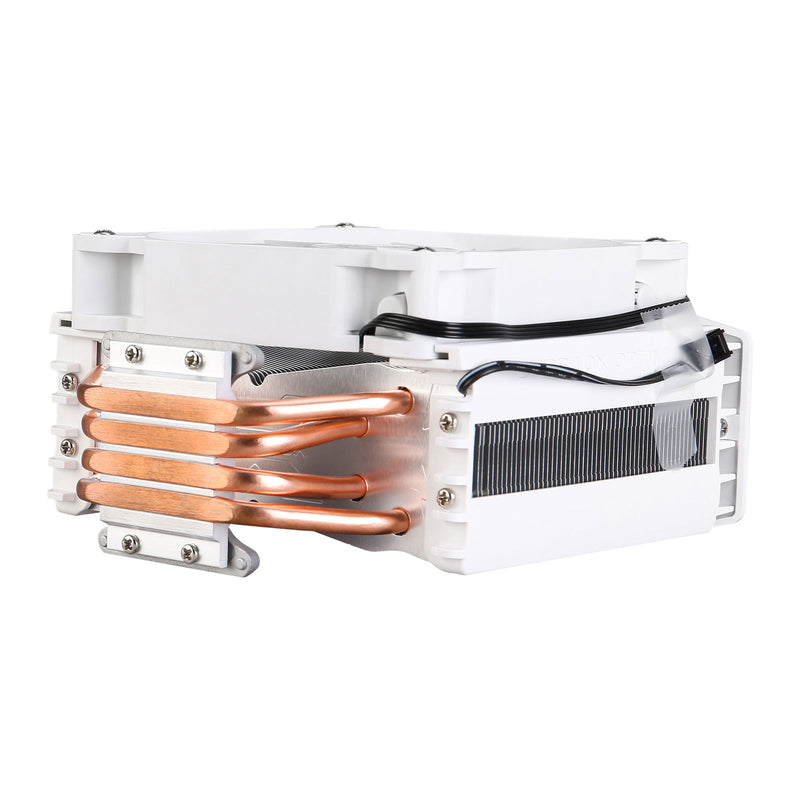

Aluminum Heat Sinks and Heatpipes
Delicate designed 4 copper heatipipes and aluminum heat sinks are combined for best cooling performance.

Patented "Dual Blade Fan" by ZALMAN
Dual airflow from impeller structure brings strong cooling performance while efficient airflow reduces noise.

Dual Blade Fan
When the small inner flow tunnel and large outer flow are combined simultaneously, it creates greater airflow to improve cooling performance.

Pre-Installed Anti-Vibration Rubber Pads
Total of 8 anti-vibration rubber pads installed in front and back to minimize noise and vibration.

Hydraulic Bearing
There is low noise and long life expectancy.
