• Direct Touch Technology: The DTH case delivers heat from the CPU to the heatsink directly to maximize cooling performance with 4 highly conductive copper heatpipes. Supports up to 180W TDP, Max Noise: 27.0 dB(A), Max Airflow: 61.52 CFM.
  • Patented Dual Blade Fan: Dual airflow from impeller structure brings strong cooling performance while reducing noise. Ultra-quiet dual blade 120mm fan with LED RGB. Runs at 800-1500 RPM.
  • Top Plate RGB: Has spectrum RGB on the top plate and white LEDs 120mm fan.
  • Socket Support: Intel: LGA2066/2011-V3/2011/115X/1366, AMD: AM4/AM3+/AM3/FM2+/FM4
  • Intel 10th Gen & AMD Ryzen compatible


Model CNPS10X Optima II White
Dimensions
132(L) x 85(W) x 158(H)mm
Materials Pure Aluminum, Pure Copper, Plastic
Weight 740g
Heat Dissipation Area 6,803㎠
Heat Pipe 4
TDP 180W
Fan Dimensions
120 x 120 x 25(H)mm
Fan Bearing Type
Hydraulic Bearing
Fan Speed 800~1,500 RPM ± 10%
MAX Fan Noise Level
27 dB(A) ± 10%
MAX Fan Air Flow
61,52 CFM
MAX Fan Air Pressure
1.06mm H₂O
Fan Life Span
50,000 hours
Fan Connector Type 4-pin
Fan Control Method PWM Control
Rated Voltage 12V DC
Rated Current 0.2A
Power Consumption 2.4W
Socket Compatibility Intel: LGA2066/2011-V3/2011/1200/115X/1366 CPUs, AMD: AM4/AM3+/AM3/FM2+/FM2 CPUs
CNPS10X Optima II white

ZALMAN CNPS10X OPTIMA II WHITE
High Performance CPU Cooler
Spectrum RGB LED lighting effect brings a perfect upgrade for your PC.

- Full White Frame with Spectrum RGB LED
- DTH (Direct Touch Heatpipes)
- Hydraulic Bearing
- 120mm Dual Blade Fan (PWM) w/ White LED
- Covers up to 180 TDP
- Maximum Noise Level 27 dB(A) ± 10%

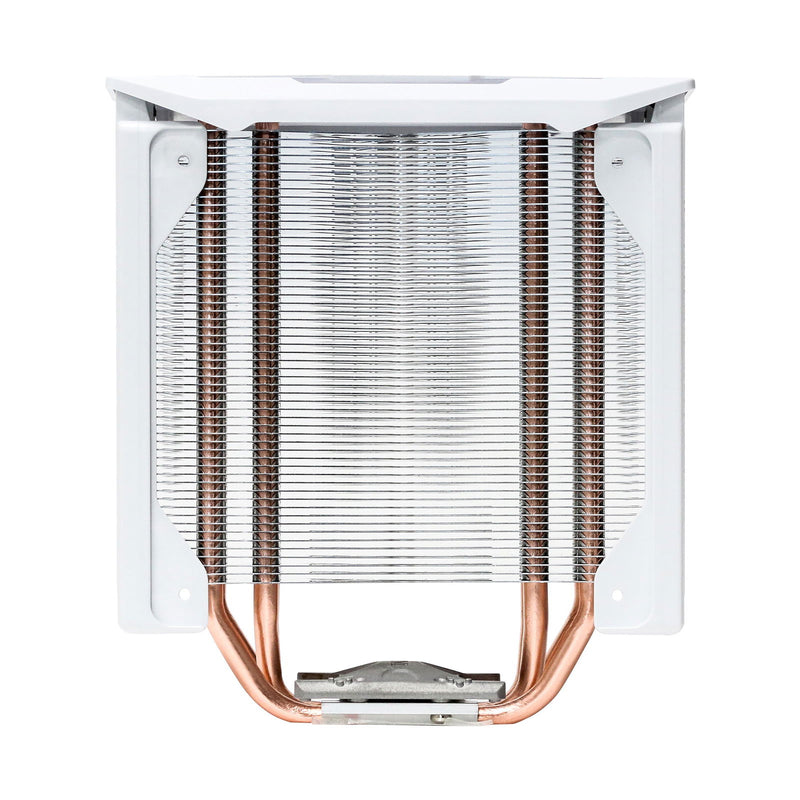

Four Highly Conductive Copper Heatpipes
Four delicately designed copper heatpipes are directly compressed to the CPU which equally absorbs and rapidly dissipates heat.

All New White Design
Spectrum RGB LED lighting effect brings a perfect upgrade for your PC.

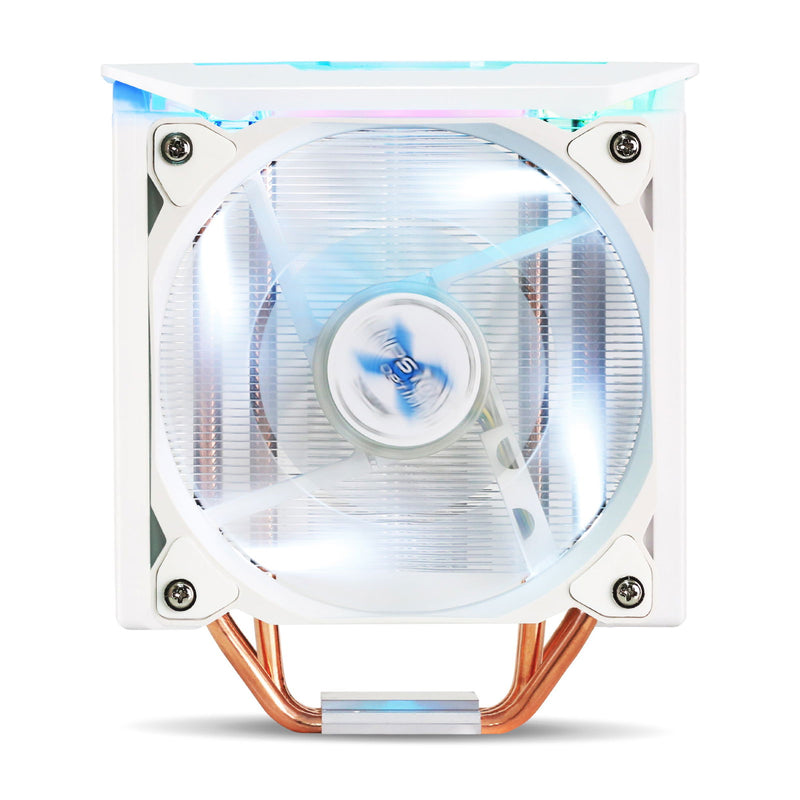

Patented "Dual Blade Fan" by ZALMAN
Dual airflow from impeller structure brings strong cooling performance while efficient airflow reduces noise.

Dual Blade Fan
When the small inner flow tunnel and large outer flow are combined simultaneously, it creates greater airflow to improve cooling performance.

Pre-Installed Anti-Vibration Rubber Pads
Total of 8 anti-vibration rubber pads installed in front and back to minimize noise and vibration.

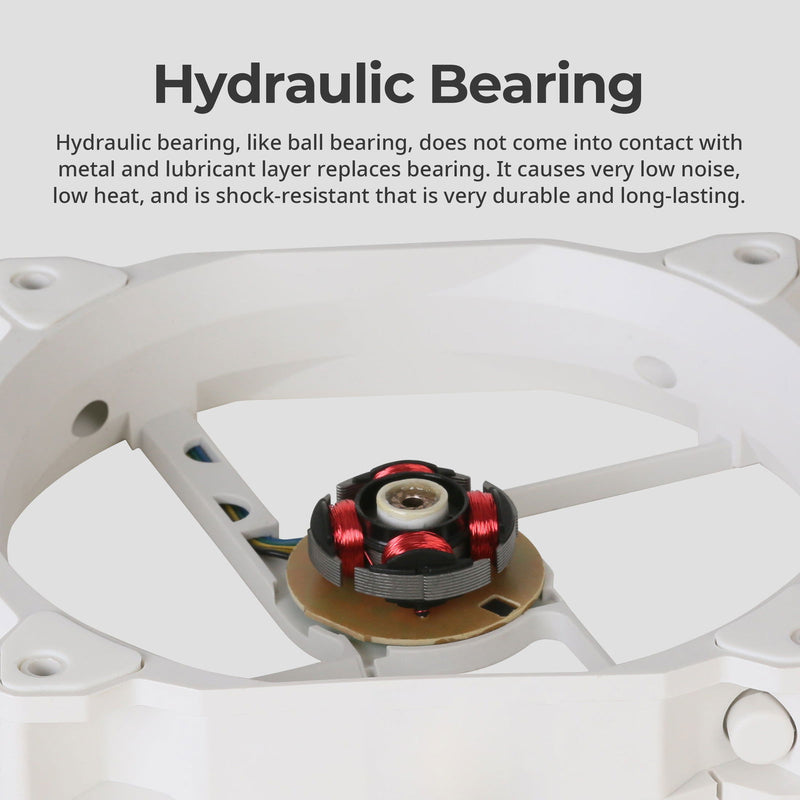

Hydraulic Bearing
There is low noise and long life expectancy.
