• Direct Touch Technology: The DTH case delivers heat from the CPU to the heatsink directly to maximize cooling performance with 4 highly conductive copper heatpipes. Supports up to 180W TDP, Max Noise: 27.0 dB(A), Max Airflow: 61.52 CFM.
  • Patented Dual Blade Fan: Dual airflow from impeller structure brings strong cooling performance while reducing noise. Ultra-quiet dual blade 120mm fan with LED RGB. Runs at 800-1500 RPM.
  • Spectrum RGB LED: Add spectrum RGB lighting effect to your new desktop pc build with RGB fan and RGB top cover.

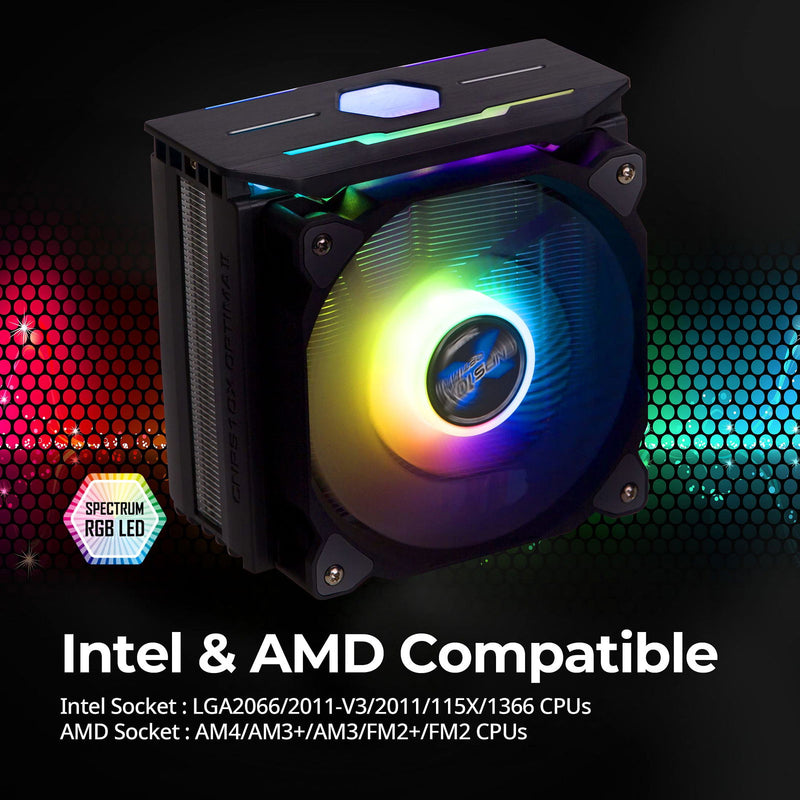

  • Socket Support: Intel: LGA2066/2011-V3/2011/115X/1366, AMD: AM4/AM3+/AM3/FM2+/FM4
  • Intel 10th Gen & AMD Ryzen compatible


CNPS10X Cooler Installation Guide

Model CNPS10X Optima II Black (RGB)
132(L) x 85(W) x 158(H)mm
Materials Pure Aluminum, Pure Copper, Plastic
Weight 740g
Heat Dissipation Area 6,803㎠
Heat Pipe 4
TDP 180W
Fan Dimensions
120 x 120 x 25(H)mm
Fan Bearing Type
Hydraulic Bearing
Fan Speed 800~1,500 RPM ± 10%
MAX Fan Noise Level
27 dB(A) ± 10%
MAX Fan Air Flow
61,52 CFM
MAX Fan Air Pressure
1.06mm H₂O
Fan Life Span
50,000 hours
Fan Connector Type 4-pin
Fan Control Method PWM Control
Rated Voltage 12V DC
Rated Current 0.35A
Power Consumption 4.2W
Socket Compatibility Intel: LGA2066/2011-V3/2011/115X/
1366 CPUs, AMD: AM4/AM3+/AM3/


Zalman-Inspired Design with Full Black Frame
Spectrum RGB LED lighting effect brings a perfect upgrade for your PC.

- Pre-Installed Anti-Vibration Rubber Pads
- Aluminum Heat Sinks and Heatpipes
- Powerful Dual Blade Fan
- Spectrum RGB LED
