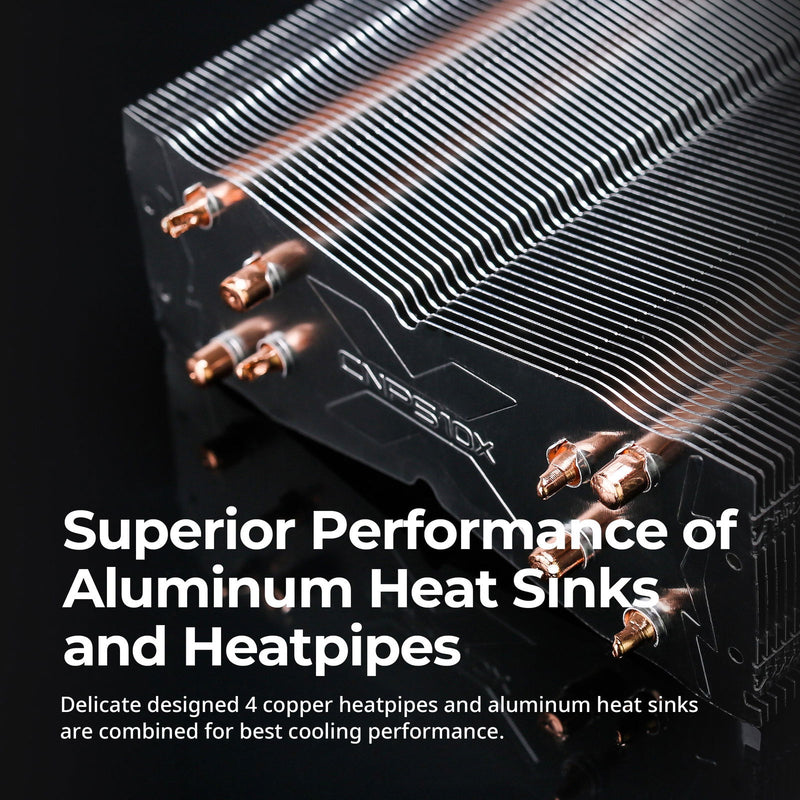

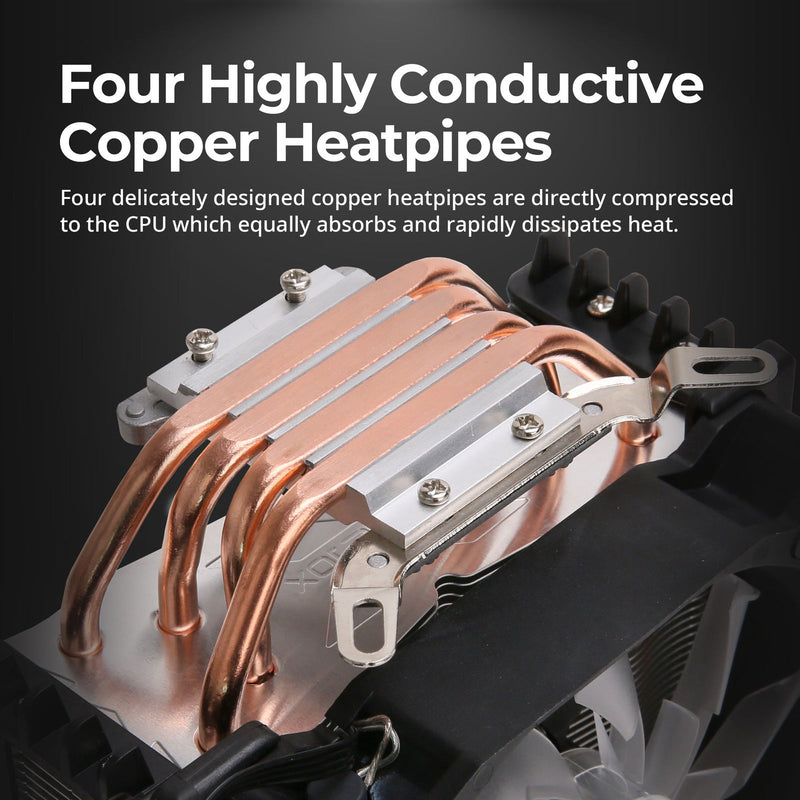

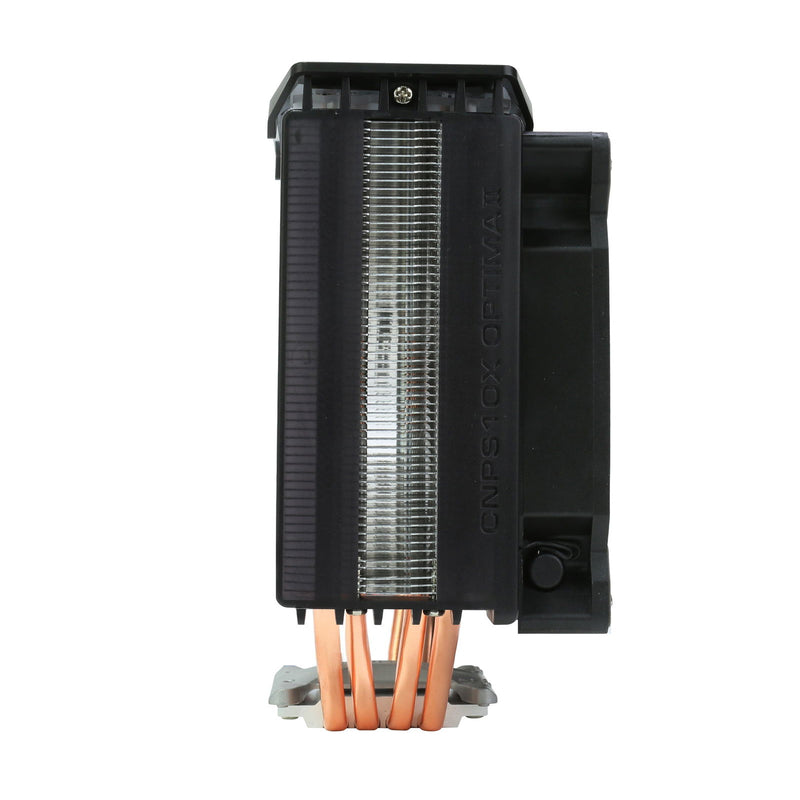

• DIRECT TOUCH TECHNOLOGY: The DTH case delivers heat from the CPU to the heatsink directly to maximize cooling performance with 4 highly conductive copper heatpipes. Supports up to 180W TDP, Max Noise: 27.0 dB, Max Airflow: 61.52 CFM.

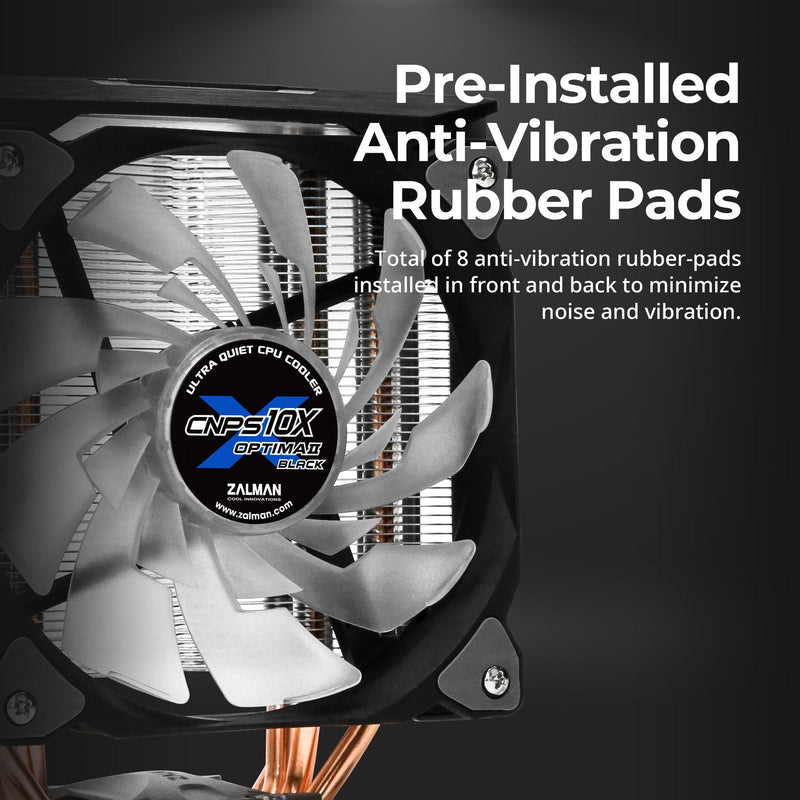

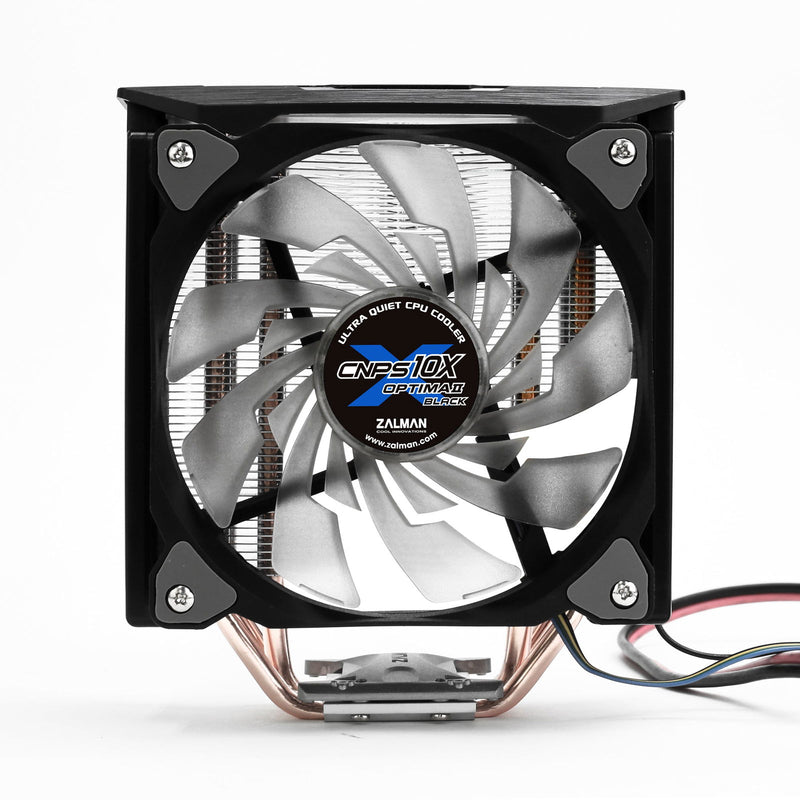

  • PATENTED DUAL BLADE FAN: Dual airflow from impeller structure brings strong cooling performance while reducing noise. Ultra-quiet dual blade 120mm fan with LED RGB. Runs at 800-1500 RPM.

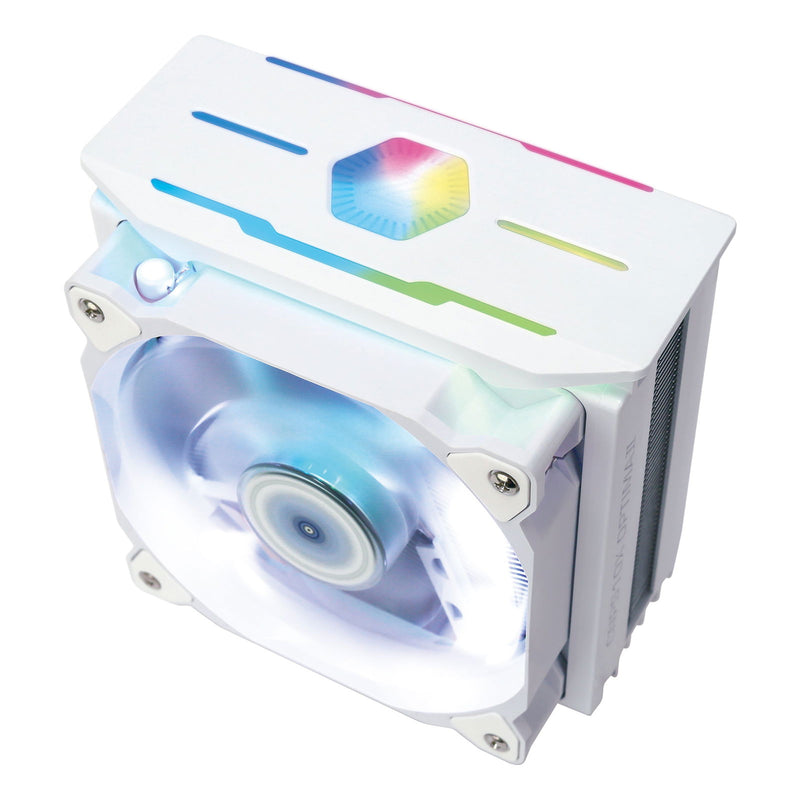

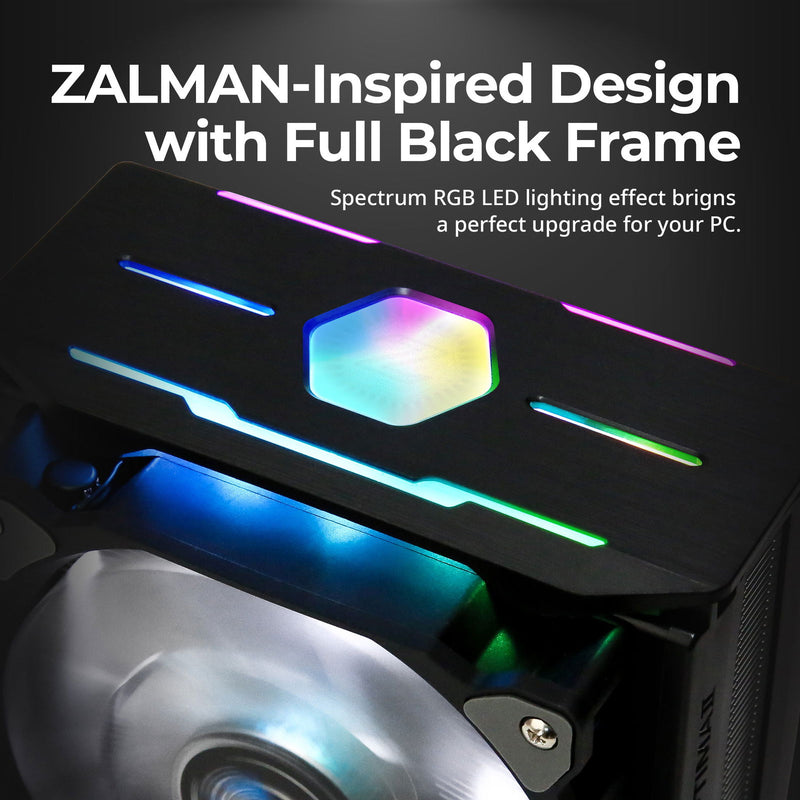

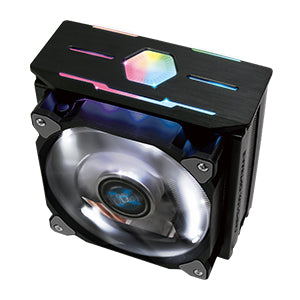

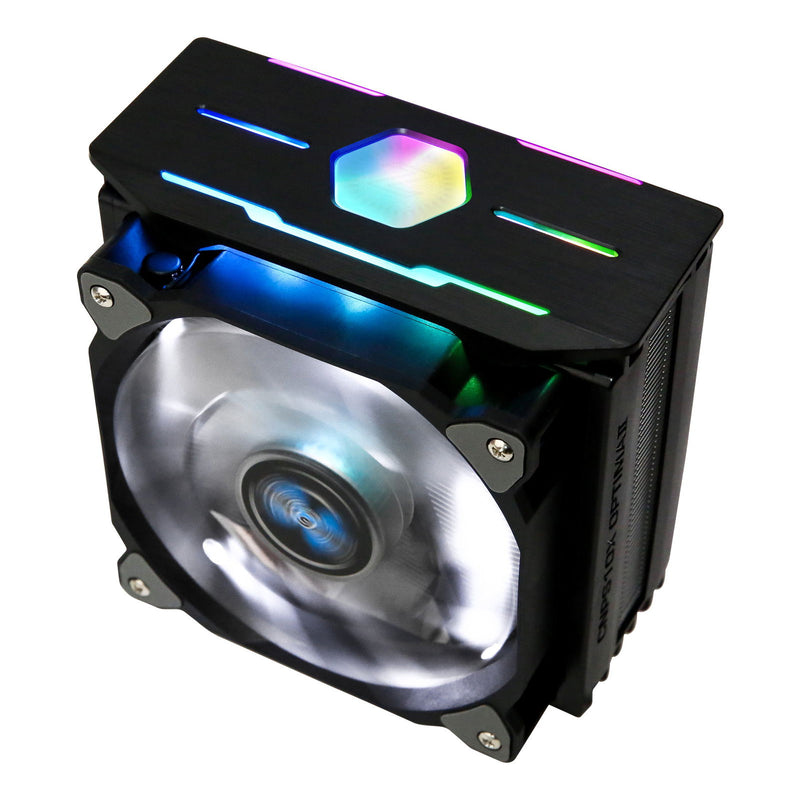

  • TOP PLATE RGB: Has spectrum RGB on the top plate and white LEDs 120mm fan.
  • SOCKET SUPPORT: Intel: LGA2066/2011-V3/2011/115X/1366, AMD: AM4/AM3+/AM3/FM2+/FM4
    Intel 10th Gen & AMD Ryzen compatible

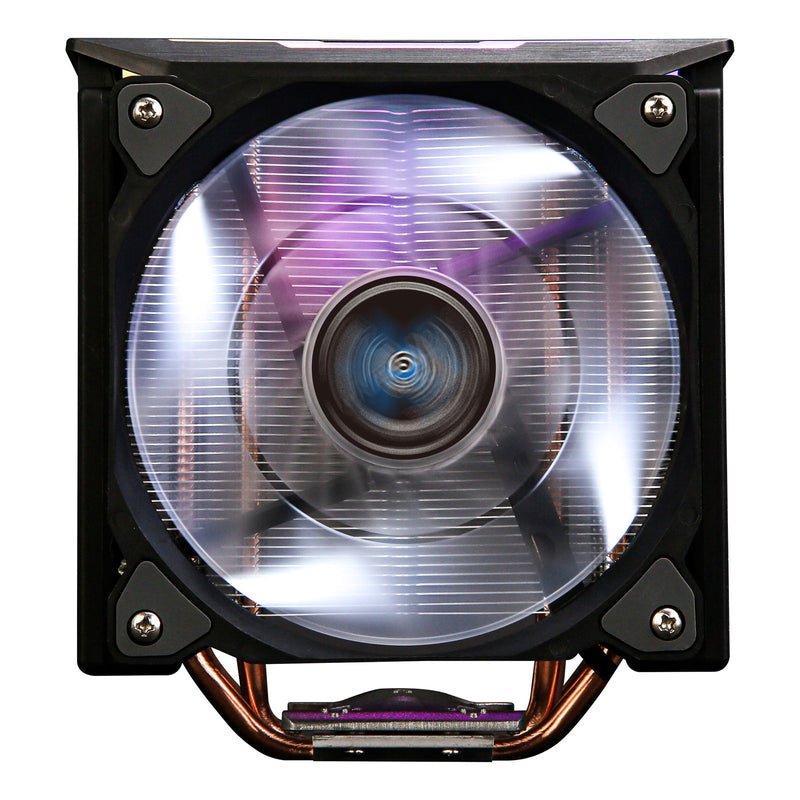

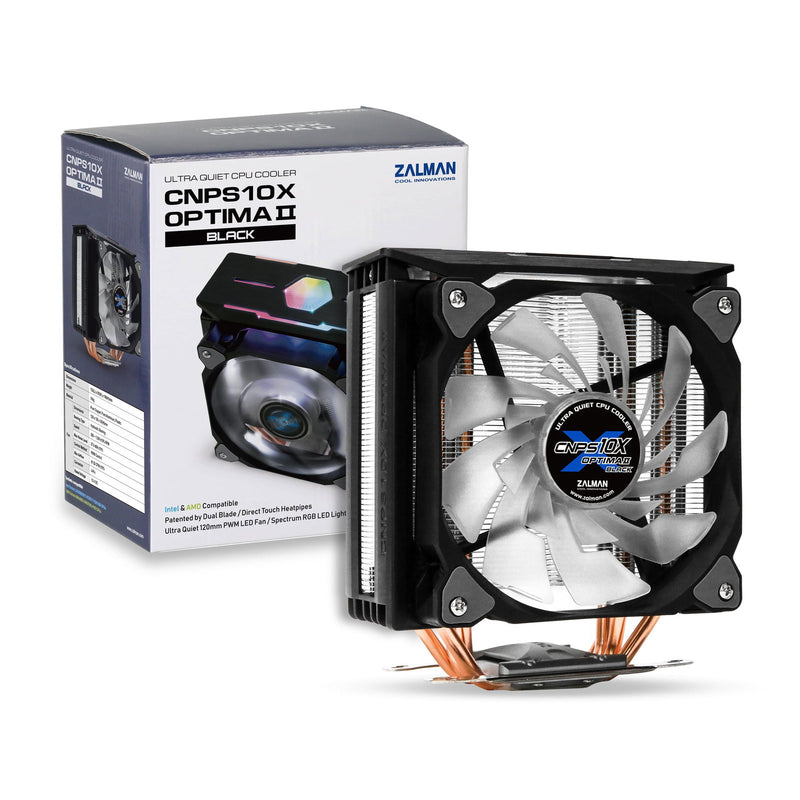

Model CNPS10X Optima II Black
132(L) x 85(W) x 158(H)mm
Materials Pure Aluminum, Pure Copper, Plastic
Weight 740g
Heat Dissipation Area 6,803㎠
Heat Pipe 4
TDP 180W
Fan Dimensions
120 x 120 x 25(H)mm
Fan Bearing Type

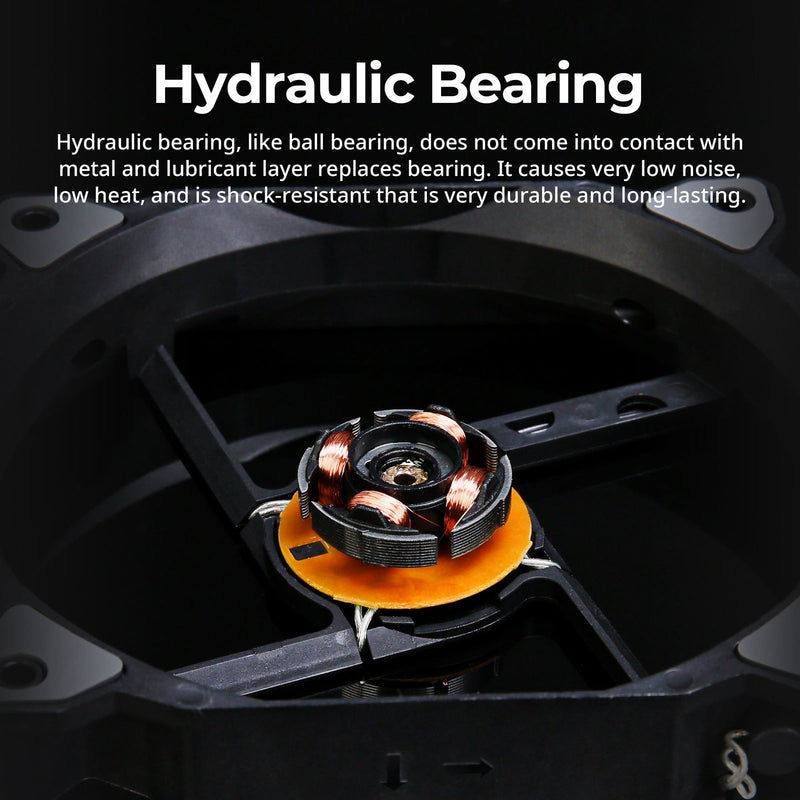

Hydraulic Bearing
Fan Speed 800~1,500RPM ± 10%
MAX Fan Noise Level
27dB(A) ± 10%
MAX Fan Air Flow
MAX Fan Air Pressure
Fan Life Span
50,000 hours
Fan Connector Type 4-pin
Fan Control Method PWM Control
Rated Voltage 12V DC
Rated Current 0.2A
Power Consumption 2.4W
Socket Compatibility Intel:LGA2066/2011-V3/2011/1200/115X/1366 CPUs, AMD:AM4/AM3+/AM3/FM2+/FM2 CPUs
